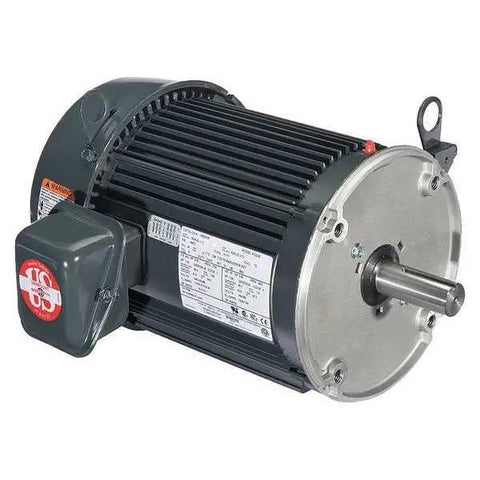

Three-Phase General Purpose Motor 25 HP, 284TC Frame, 208-230/460V AC, 3530 Nameplate RPM, TEFC Enclosed Fan Cooled, 60/50 Hz, Full Load Amps 65.0-57.0/28.4, Industrial Motor For Heavy-Duty Applications
✔️ 25 HP TEFC motor, 284TC frame, 208-230/460V, 3530 RPM
This industry-grade three-phase general purpose motor is TEFC enclosed and built for continuous duty in heavy industrial uses. It powers pumps, fans, conveyors, and other equipment on factory floors, mills, and maintenance shops where dependable performance matters.
✅ 25 HP rating with 3530 nameplate RPM, 284TC frame, CW/CCW rotation
✅ Voltage options: 208-230/460V AC, 60/50 Hz
✅ Full load amps: 65.0-57.0/28.4 A; service factor 1.25
✅ Aluminum frame, ball bearings, TEFC enclosure
✅ Insulation class F, ambient max 40 C, continuous duty
✅ NEMA-compatible mounting (C-Face)
💡 What is a three-phase TEFC general purpose motor used for in industrial equipment?
This handy overview explains typical applications and buying considerations for this motor type.
- Commonly drives pumps, fans, conveyors, and light machine tools
- Provides reliable continuous duty in factory and shop environments
- Operates on standard 208-230/460V power with 60/50 Hz input
- Aluminum frame keeps weight manageable while staying robust
