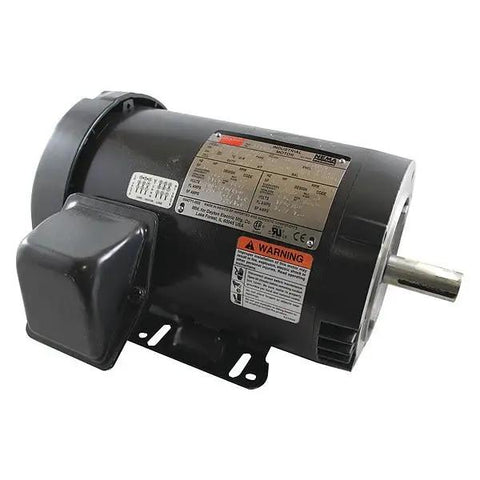

Three Phase General Purpose Motor 1 HP TEFC C Face Rigid Base Frame 143 5TC 56HCZ 230 And 460 Volts 60 Hz 1755 RPM Full Load Amps 3.0 At 230V And 1.5 At 460V

✔️ 230/460V AC, 60 Hz, 1755 RPM, 3.0/1.5 A, Single unit

This general purpose motor is a three-phase TEFC unit built for industrial use. It’s commonly mounted on conveyors, pumps, and fans. With a rigid base and C-face mounting, it's easy to swap into existing systems. Rated for continuous duty at up to 40°C ambient, it features insulation class F and a service factor of 1.25 for reliable operation.

✅ Three-phase, TEFC enclosure
✅ 1 HP rating, frame 143-5TC/56HCZ
✅ 230/460V AC, 60 Hz
✅ Full Load Amps 3.0 A at 230V / 1.5 A at 460V
✅ Rigid Base, C-face mounting
✅ Insulation Class F, Service Factor 1.25
✅ Ball bearings, Continuous duty
✅ CW/CCW shaft rotation
✅ Nominal efficiency around 85.5%

💡 What is a 3-phase general purpose motor used for in typical industrial equipment? Handy for a wide range of machines that need reliable, steady power. - Handy for pumps, fans, conveyors, and small machine tools - Matches common 230/460V 60 Hz power supplies - Mounts easily with C-face and rigid base for quick swaps - Good option for continuous duty with solid bearings
