Three Phase General Purpose Motor 1 HP 143TC Frame 230 460V AC 1760 RPM TEFC Totally Enclosed Fan Cooled 60 Hz Full Load Amps 3 To 1.5 Amps C Face Mount Insulation Class F Service Factor 1.15 Industrial Duty

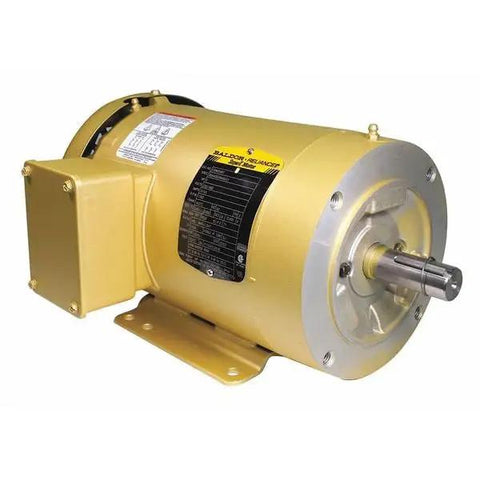

Industrial 1 HP TEFC Three-Phase Motor, 143TC Frame (Single)
✔️ TEFC enclosure, 1 HP, 1760 RPM, 230/460V, 60 Hz, 1.15 SF, single unit

This is a general purpose three-phase induction motor with a Totally Enclosed Fan Cooled (TEFC) enclosure. It’s built for industrial duty and reliable operation in harsh environments. The 143TC frame ensures compatible mounting and interchangeability with a wide range of equipment such as conveyors, pumps, fans, and mixers.

✅ 1 HP rated output, continuous duty
✅ 1760 RPM nominal speed
✅ Frame 143TC for easy mounting
✅ Voltage 230/460V AC, 60 Hz
✅ Full Load Amps 3/1.5 A
✅ TEFC enclosure for hostile environments
✅ CW/CCW shaft rotation
✅ Insulation class F, service factor 1.15
✅ Ball bearings, steel frame, max ambient 40 C
✅ CSA, CSA EEV, UR listed for safety and compliance

💡 What is a general purpose three-phase motor used for?

These motors are handy workhorses for a range of industrial tasks. - handy for conveyors, pumps, fans, and machine tools - reliable drive for continuous duty in manufacturing environments - easy to pair with VFDs for speed control and torque management
