Three Axis 86mm Closed Loop Stepper Motor Kit With 12Nm Torque, 1700 Oz In, 1000 Line Encoder, Pro Grade Servo Motion, 0 To 8A Driver, 400W 60V Power Supply, CNC Kit For CNC Router And 3D Printer

Three-Axis Closed-Loop 86mm Stepper Kit for CNC (Single)

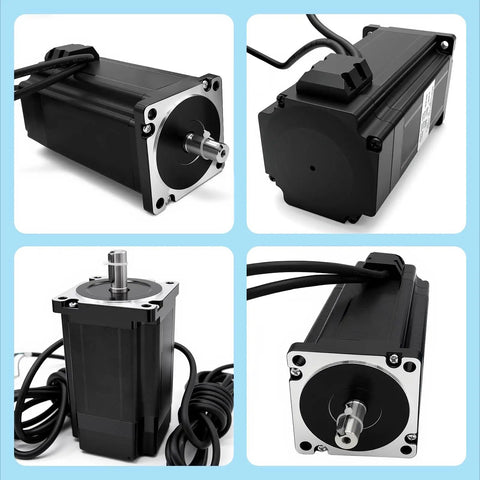

✔️ 86mm closed-loop stepper with 12Nm torque and 1000-line encoder

This three-axis closed-loop stepper kit is built for CNC routers and 3D printers, delivering reliable motion with encoder feedback. It includes the motor, driver, and a 400W 60V power supply for easy setup.

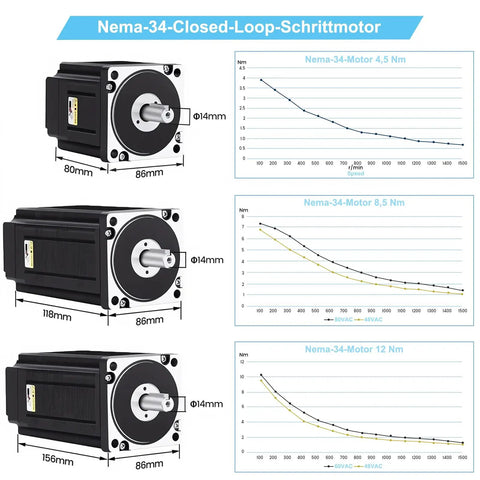

✅ Holding torque 12 N m / 1700 oz in
✅ Rated current 6 A, peak 8 A
✅ Step angle 1.8°, 2-phase hybrid driver

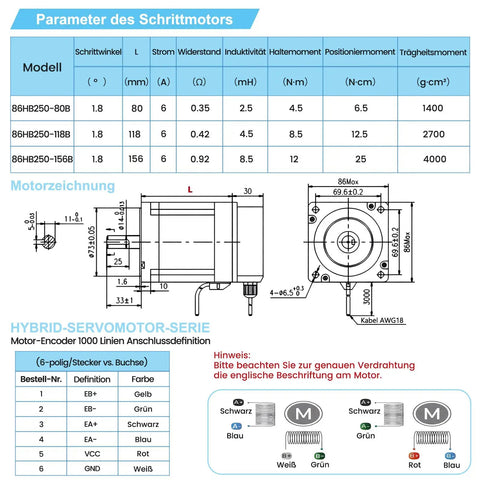

✅ Encoder 1000-line, shaft 14 mm, size 86x86x156 mm (3.38 x 3.38 x 6.14 in)

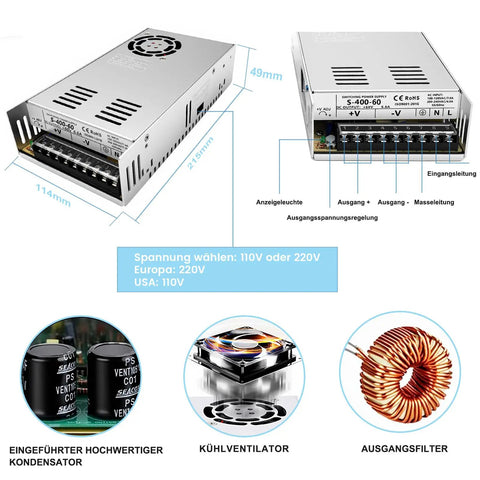

✅ Power supply 400 W, 60 V DC, input 110/220 V

💡 What is a closed-loop stepper motor kit used for in CNC and 3D printing setups?

Handy because encoder feedback helps keep precise control and reduces missed steps.

• Encoder feedback boosts accuracy and repeatability
• Higher torque with smooth operation across speeds
• Built-in protections guard against over current and over voltage

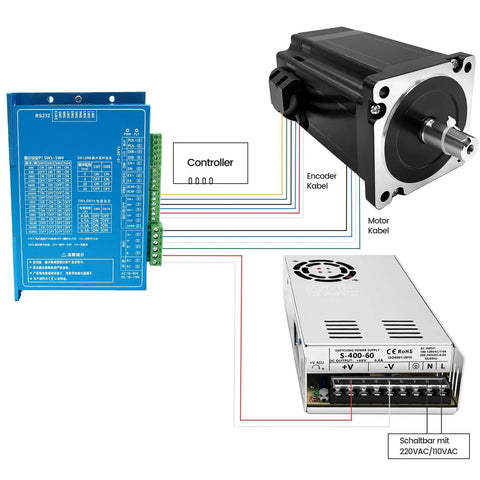

• Easy to wire into common CNC controllers and power supplies
