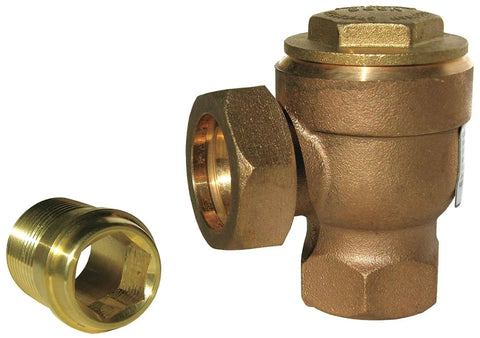

Thermostatic Steam Trap 125 Psi 353F Three And One Eighth Inch Length With Three Quarters Inch FNPT Connections Brass Body Angle Configuration Self Adjusting Air Vent Heavy Duty Condensate 4200 Lbs Per Hour

High-capacity thermostatic steam trap with brass body
✔️ 125 psi max, 3-1/8 in length, 3/4 in FNPT, 353°F, 4200 Lb/hr, Single Unit

This thermostatic steam trap drains condensate from steam systems, especially heat exchangers and condensate lines in industrial setups. Brass body, angle configuration, and self-adjusting air vent help maximize heat transfer and prevent steam loss in high-temperature operations.

✅ End-to-End Length: 3-1/8 in (79.4 mm)
✅ FNPT Connections: 3/4 in (19.05 mm)
✅ Maximum Operating Pressure: 125 psi
✅ Maximum Temperature: 353°F
✅ Condensate Capacity: 4200 Lb/hr
✅ Material: Brass
✅ Configuration: Angle
✅ Type: Thermostatic
✅ Vent: Self-Adjusting Air Vent

💡 What is a thermostatic steam trap used for in industrial steam systems? A handy device to remove condensate while preserving steam energy. - It drains condensate from heat exchangers and piping without letting live steam escape. - It improves heat transfer by removing condensate after it subcools, maximizing efficiency. - It supports operation up to 353°F and 125 psi, handling heavy condensate loads. - It uses a self-adjusting air vent to prevent air locks and keep steam flow steady.
