TFS20 Lidar Module for Robots and Drones With 0.2 to 20 Meter Range and 6 cm Precision Direct ToF Sensor Ultra Compact Outdoor Ready and Sunlight Resistant Plug and Play Compatible With Arduino Pixhawk and Raspberry Pi
✔️ Single module, 0.2-20 m range, ±6 cm accuracy, UART/I2C

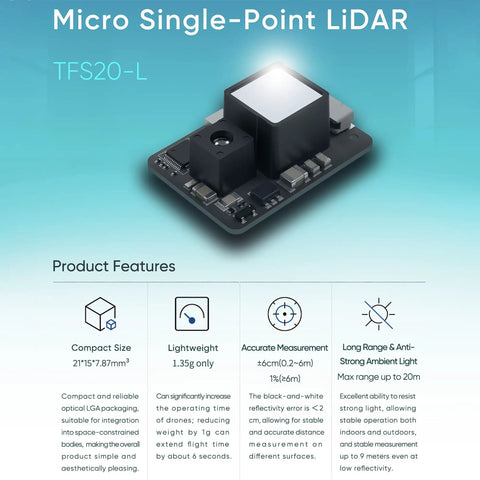

The TFS20-L is a tiny LiDAR module that uses direct Time-of-Flight to deliver precise distance data, designed for outdoor robotics, drones, smart parking, and IoT projects. It plugs directly into Arduino, Raspberry Pi, and Pixhawk-based systems for plug-and-play integration.
✅ Detection range: 0.2-20 m (90% reflectivity), 0.2-9 m (10% reflectivity)
✅ Accuracy: ±6 cm (0.2-6 m); 1% (≥6 m)
✅ Repeatability: 2 cm (0.2-6 m) @1σ
✅ Frame rate: 0/20/50/100/250 Hz (default 100 Hz)
✅ Ambient light resistance: 100 Klux
✅ Power: avg ≤0.35 W; peak 115 mA @3.3V

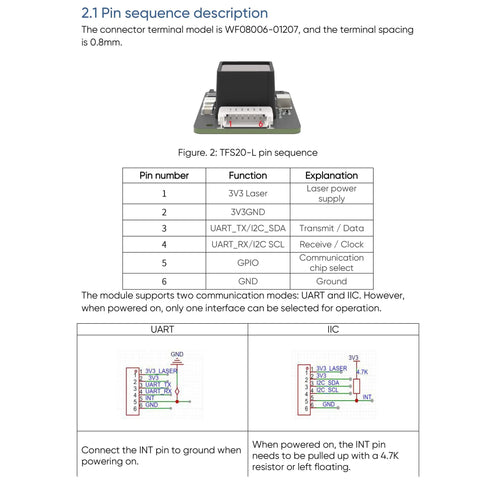

✅ Interfaces: UART / I2C (LVTTL 3.3 V)

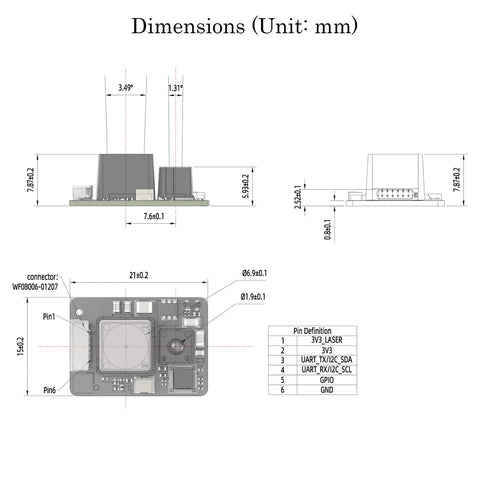

✅ Dimensions: 21.0 × 15 × 7.87 mm; Weight: 1.35 g
✅ Connector: 0.8 mm 6P (WF08006-01207)
✅ Operating temperature: -20°C to +60°C

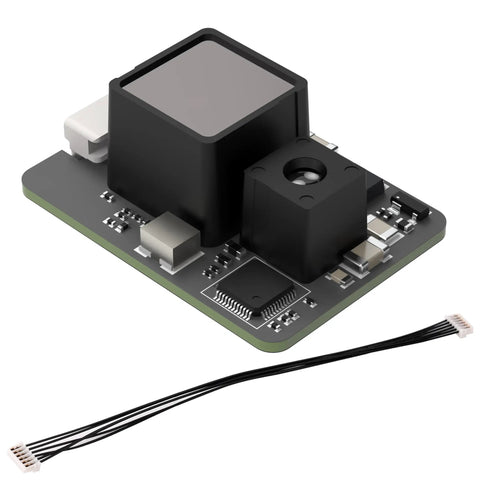

✅ Package includes: 1 × TFS20-L LiDAR Module, 1 × Connector Cable
💡 What is a lidar module used for in modern robotics and drones? This handy device helps with precise distance sensing for navigation and obstacle avoidance in outdoor environments.
- Handy distance sensing for navigation and obstacle avoidance - Compact, low-power design for battery-powered platforms - Easy UART/I2C integration with common boards - Works under bright sunlight up to 100 Klux for outdoor use
