TF03-180 Industrial High Speed Lidar Sensor Outdoor IP67 100m Long Range Single Point Ranging Finder Module RS485 RS232 Compatible With Pixhawk Raspberry Pi Drones and Robots
✔️ 100m range, IP67 rugged, 1kHz frame, 5V, 77g, 1pc pack

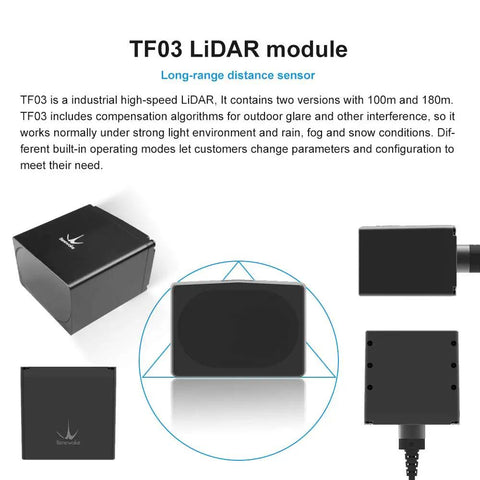

TF03-180 is an industrial-grade LiDAR sensor designed for accurate single-point ranging in outdoor environments. It features IP67 protection and 100Klux ambient light immunity, making it reliable under bright sunlight. Ideal for drones, robots, traffic monitoring, smart devices, and terrain sensing, it plugs into Pixhawk, Raspberry Pi, and other controllers for easy integration.
✅ Operating range: 0.1m - 180m
✅ Ambient light immunity: 100Klux
✅ Accuracy: ±10cm within 10m; 1% beyond 10m
✅ Range resolution: 1 cm

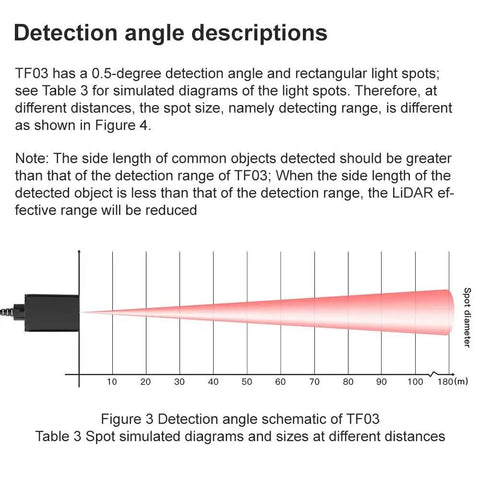

✅ FOV: 0.5°
✅ Frame rate: 1 - 1000 Hz (default 100 Hz)
✅ Supply voltage: DC 5V ±0.5V; Power ≤0.9W; Avg ≤180mA

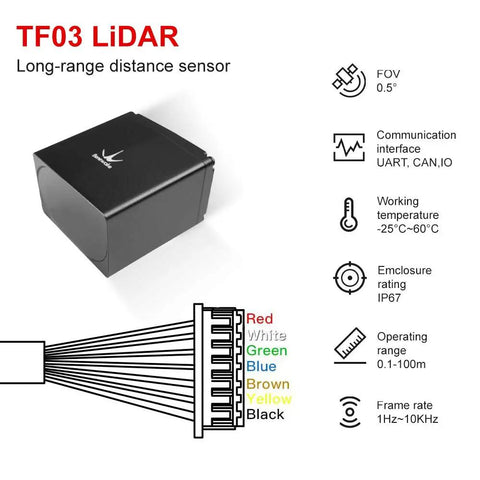

✅ Interfaces: UART LVTTL 3.3V; RS485/RS232 or CAN (version dependent)

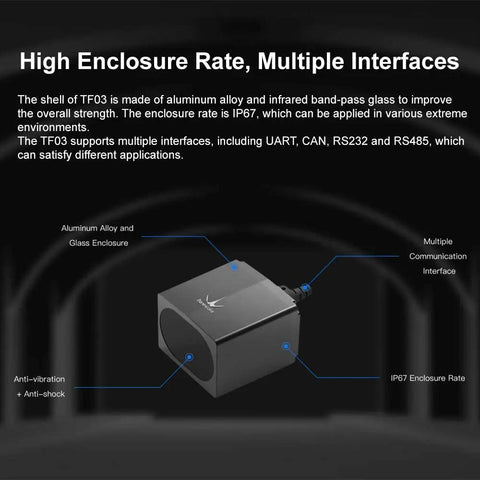

✅ Enclosure: IP67; VCSEL 905 nm; Temperature -20 to 60 °C

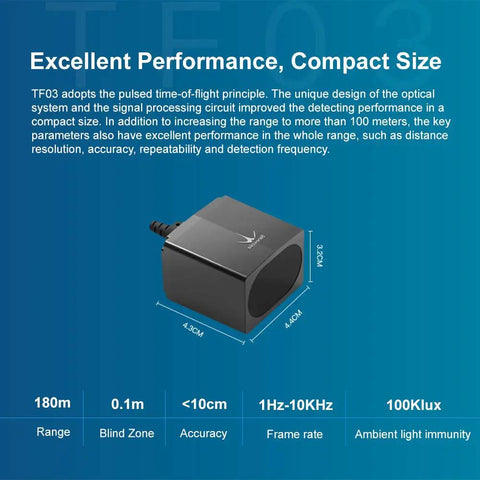

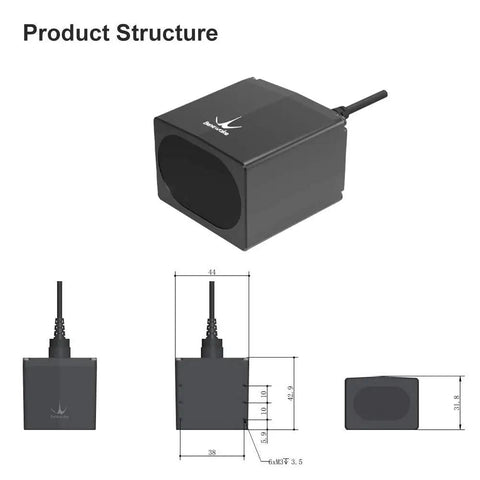

✅ Dimensions: 44 x 43 x 32 mm; Weight: 77 g (with cables)
✅ Certifications: CE, FCC, RoHS
💡 What is an outdoor IP67 LiDAR module used for in drones and robotics? This handy sensor provides reliable distance data for obstacle avoidance, mapping, and safe navigation. - Handy for obstacle detection and distance measurement in autonomous drones and robots - Supports altitude hold, terrain following, and navigation in outdoor environments - Compatible with Pixhawk, Raspberry Pi, and other controllers for quick setup
