TF02 Pro LiDAR Sensor For Drones And Smart Traffic Systems, IP65 Weatherproof Rangefinder With 0.05-40m Reach And 1cm Resolution, Ultra-Fast, High Accuracy, Strong Light Resistance, UART I2C IO, Ideal For UAVs

TF02-Pro LiDAR Sensor for UAVs and smart traffic systems
✔️ 0.05-40 m range, 1cm resolution, IP65, 1-unit pack, 1000Hz

The TF02-Pro is a high-speed LiDAR rangefinder built for precise distance measurement in tough outdoor settings. It’s a common fit for drones, automated traffic systems, tolling, parking guidance, and industrial monitoring, delivering reliable sensing even under strong ambient light.

✅ Range: 0.05-40 m (90% reflectivity); 0.05-13.5 m (10% reflectivity)
✅ Accuracy: ±5 cm (0.05-5 m); ±1% (5-40 m)
✅ Frame rate: 1-1000 Hz, adjustable; default 100 Hz
✅ Field of View: 3°
✅ Interfaces: UART, I2C (address 0x10), and I/O
✅ Power: DC 5-12 V, ≤1 W

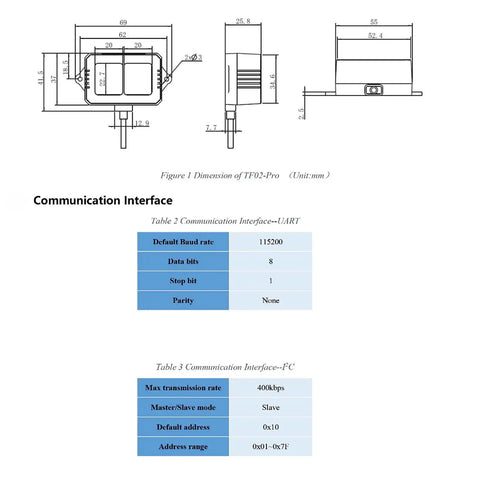

✅ Dimensions: 69 mm × 41.5 mm × 26 mm, 50 g
✅ Protection: IP65 weatherproof, -20°C to 60°C

💡 What is a LiDAR sensor used for in drones and smart traffic systems? A handy tool for real-time distance sensing, mapping, and safety checks in dynamic environments. - Real-time rangefinding with high accuracy for obstacle detection and navigation. - Easy integration via UART, I2C, and I/O with plug-and-play calibration. - Rugged IP65 enclosure for outdoor reliability.
