TF Luna LiDAR Sensor For Drones And Robots Short Range 0.1 To 8 Meters Single Point Ranging TOF Module With UART And I2C Pro Grade Obstacle Avoidance Works With Pixhawk And Raspberry Pi Low Power Under 0.35W

Compact LiDAR sensor for drones and robots 0.2-8 m range

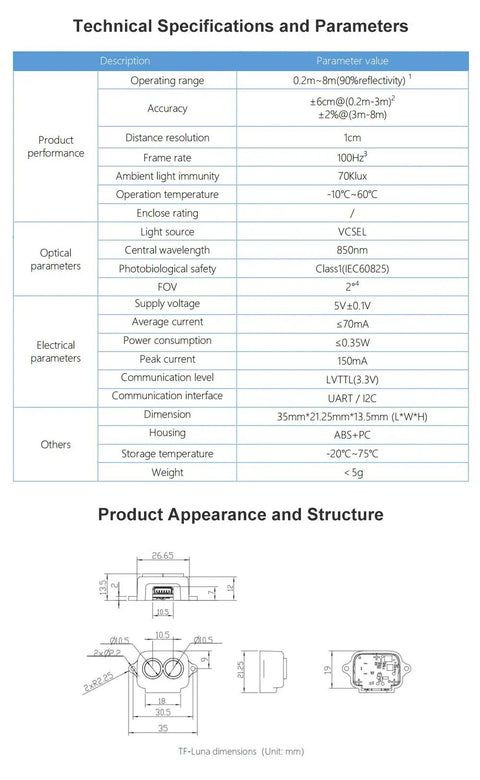

✔️ 0.2-8 m range, 5 g weight, 0.35 W, UART/I2C, 5V, single unit

This compact single-point ToF LiDAR module provides accurate distance readings and reliable obstacle detection for aerial drones and ground robots. It integrates easily with control platforms like Pixhawk and Raspberry Pi via UART or I2C, helping with altitude hold and safe navigation.

✅ Operating range: 0.2 m to 8 m with 90% reflectivity
✅ Accuracy: ±6 cm (0.2-3 m), ±2% (3-8 m)
✅ Power & current: average 350 mW, 70 mA avg, 150 mA peak; 5V
✅ Size & weight: 35 x 21.25 x 13.5 mm, weight <5 g

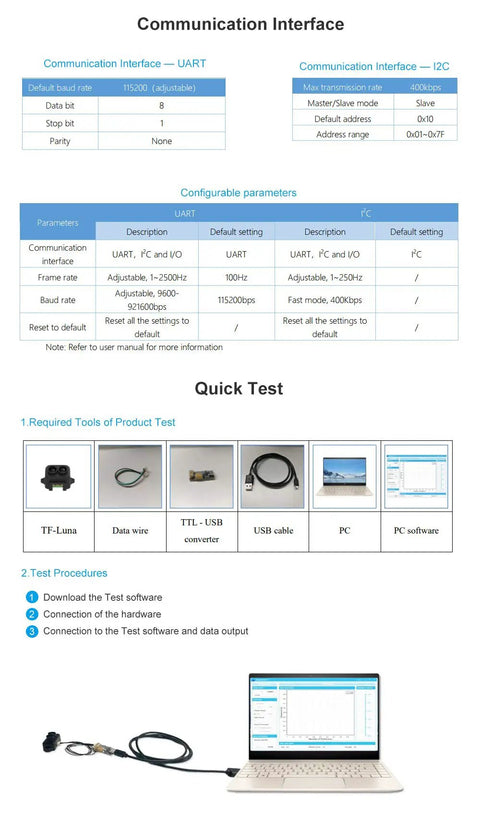

✅ Interfaces: UART and I2C LVTTL 3.3V, default baud 115200
✅ Frame rate: 1-250 Hz (default 100 Hz)
✅ Light source: VCSEL, wavelength 850 nm
✅ Operating temp: -20°C to 75°C
✅ Certifications: CE, FCC, ROHS

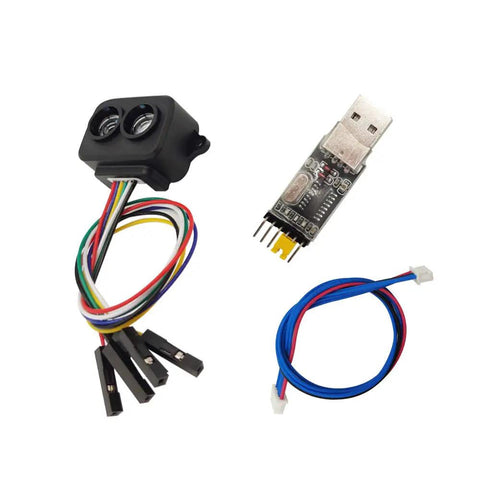

✅ Package contents: 1x module, 1x data wire, 1x USB-to-RS232 TTL converter, 1x serial cable 15 cm

💡 What is a LiDAR sensor used for in drones and robotics? This handy device provides distance measurements and obstacle awareness that improve safety and navigation. - Distances for obstacle avoidance and altitude hold - Mapping, terrain awareness, and situational awareness - Simple integration with flight controllers and microcontrollers via UART or I2C
