Ten Pack Nema 17 Stepper Motors 1.8 Degree 2 Phase High Torque 0.28Nm Bipolar 4 Lead Shaft 24mm Diameter 5mm With 1m Cable For 3D Printers DIY Robots And CNC Machines

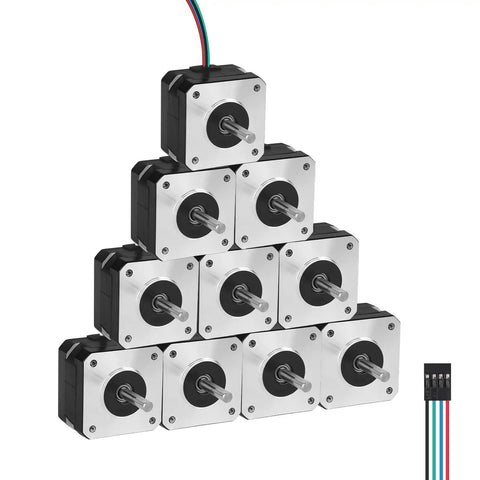

High-Torque NEMA 17 motors for 3D printers - 10-Pack
✔️ 0.28Nm torque, 1.8° step, 2-phase, 42×42×27.5mm body, 1m cable

This ten-pack of NEMA 17 two-phase stepper motors provides reliable, compact motion ideal for desktop 3D printers, DIY CNCs, small robotics, and other precision equipment. They pair with common drivers and respond well to 12-24V DC supplies.

✅ Step angle: 1.8° (200 steps/rev)
✅ Holding torque: 0.28 Nm (39.65 oz in)
✅ Type: 2-phase bipolar, 4-lead (A+, A-, B+, B-)

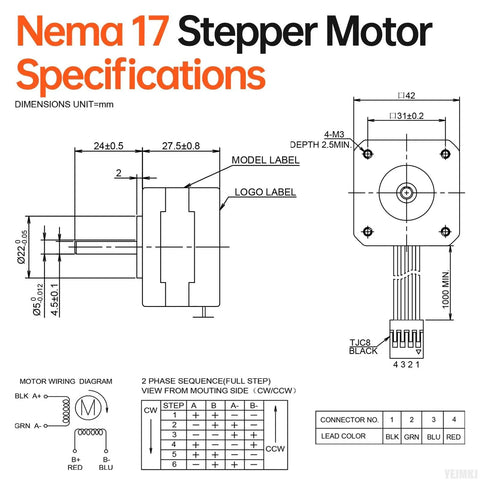

✅ Body: 42×42×27.5 mm; Shaft Ø5 mm; Shaft length 24±0.5 mm
✅ Cable: 1 m length, 4-conductor

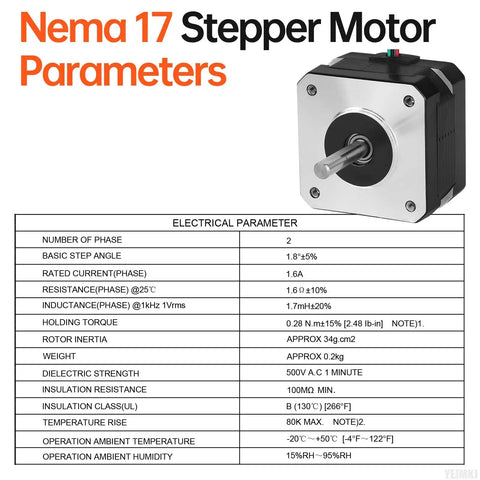

✅ Resistance: 1.6 Ω; Current rating: 1.6 A; Inductance: 1.7 mH ±20%
✅ Weight: 194 g; Mounting hole distance: 31 mm to center
✅ Operating temp: -20 to 50°C; Dielectric strength 500 V AC (1 min)

💡 What is a NEMA 17 two-phase stepper motor used for in precise motion control for hobby machines? This handy motor is a common choice for reliable, scalable motion on a wide range of small tooling and automation projects. - NEMA 17 2-phase stepper motor offers precise positioning for printers and micro CNCs - Works with standard drivers and 12-24V DC supplies for easy integration - Ideal for 3D printers, DIY robots, and compact automation projects
