TD8135MG 360 Degree Continuous Rotation Servo With Full Metal Gear High Voltage Digital Servo Delivering Beefy 35Kg Cm Torque Operating From 4.8V To 8.4V Speeds 0.32 Seconds Per 60 Degrees At 4.8V And 0.22 Seconds Per 60 Degrees At 8.4V Ideal For RC Cars
✔️ 4.8-8.4V, speeds 0.32/60° at 4.8V and 0.22/60° at 8.4V; torque 32.7-35.2kg.cm
This high-voltage digital servo provides 360-degree continuous rotation for RC cars, robotics, and automation projects. With a beefy metal gear train and robust casing, it’s built for reliability in tight spaces where endless rotation matters more than fixed angle control.

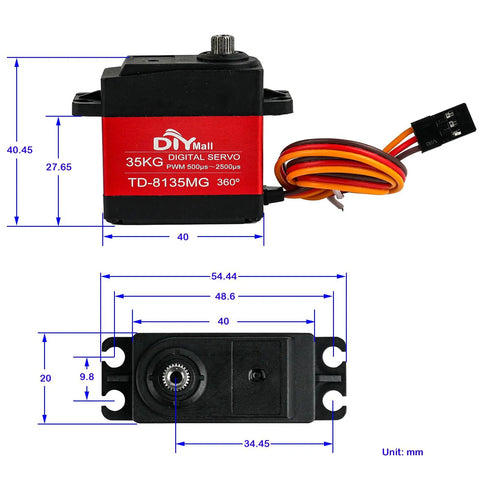

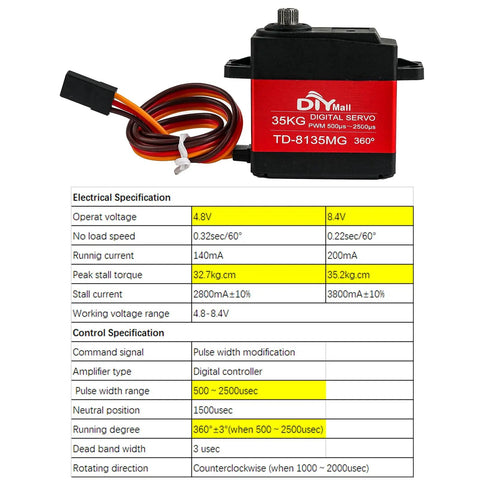

✅ Size: 40.0 x 20.5 x 40.5 mm (1.57 x 0.81 x 1.59 in)✅ Operating voltage: 4.8-8.4V; no-load speed: 0.32 s/60° at 4.8V, 0.22 s/60° at 8.4V; peak stall torque: 32.7-35.2 kg.cm
✅ Gear: 5 metal gears; bearing 2BB; housing PBT + aluminum alloy
✅ Signal: PWM pulse 500-2500 µs; neutral 1500 µs; rotation: 360° ± 3°

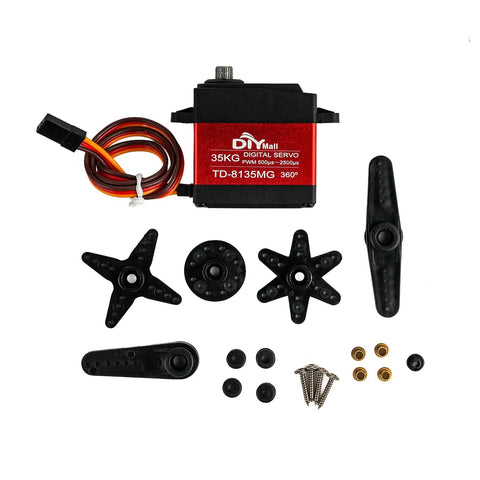

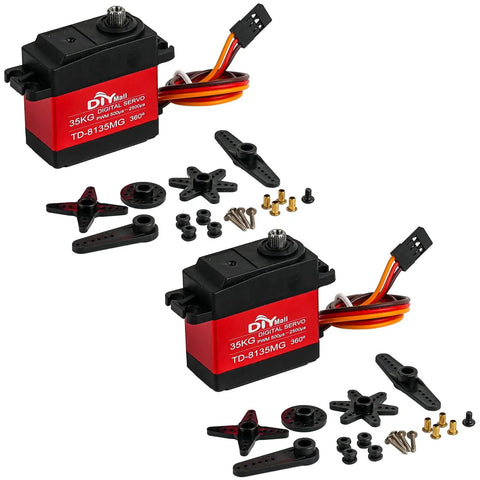

✅ Pack: 2 x TD-8135MG 35KG 360° continuous rotation servos included
💡 What is a 360-degree continuous rotation servo used for in RC cars and robotics? Handy for projects needing endless rotation and simple control, without precise position feedback. This handy device is commonly used in RC cars, robotics, and automation where continuous rotation is needed without fixed angles. - Drives wheels or tracks for constant motion in RC cars - Rotates camera pans, turrets, and linkages in robots - Works with simple PWM signals (500-2500 µs) for easy integration - Operates on 4.8-8.4V to maximize torque under load
