NB

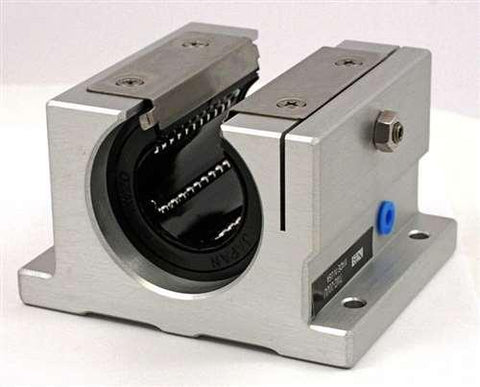

SWD12 NB Ball Bushing 3/4 inch Open Block Linear Motion
$68.95
SKU: SWD12-NB
UPC: 00193019132869
UPC: 00193019132869
Item: SWD12 Bearing
Type: Linear Ball Bushing
Shaft diameter: 3/4" inch
Quantity: One Bearing
Dynamic Load Rating Cr: 862 N
Type: Linear Ball Bushing
Shaft diameter: 3/4" inch
Quantity: One Bearing
Dynamic Load Rating Cr: 862 N
| SWD12 Slide Unit Block Type Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
3/4" Slide Unit Block Type (Inch Series), the inner diameter is 3/4" inch, bearing has steel retainer, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

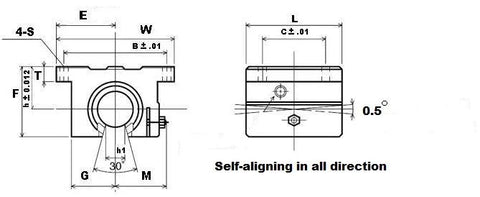

| Major dimensions | Mounting dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | h1 | B | C | S |
| 15/16" | 1-3/8" | 2-3/4" | 1-7/8" | 1-17/32" | 5/16" | 15/16" | 1-15/64" | 7/16" | 2-3/8" | 1-1/4" | 3/16" |
