Straight Up Precision Ball Screw Stage Featuring Double Linear Rail Slide Table For Xyz Axis Operations Sfuf1605 Sfu1610 Sweet Running Setup Smooth Glide Build Cnc Quick Install Project Upgrade

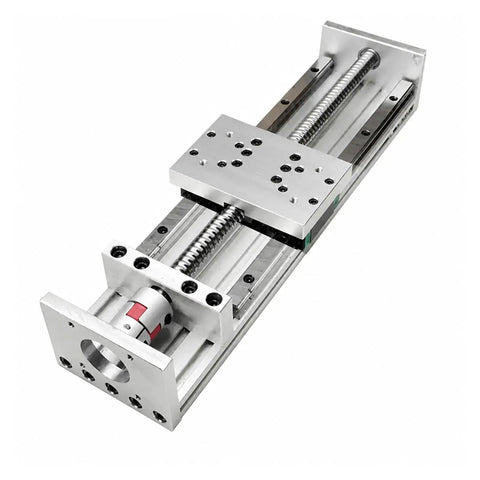

Precision Cnc Ball Screw Slide Stage Uses Dual Guide Rails
✔️ SFU1605 lead, HGR15 track, HGH15CA block, alu base, 50-1500mm run

This single pack joins a precision threaded shaft and dual guide rails to deliver steady positional control on machine tool frames and robotic prototyping rigs.

✅ Model designation SXG80120 for standardized workstation integration
✅ Select between SFU1605 or SFU1610 pitched shaft configurations
✅ Travel limits adjustable from 50 up to 1500 millimeters
✅ Overall shaft extension equals travel measurement plus 194 millimeters

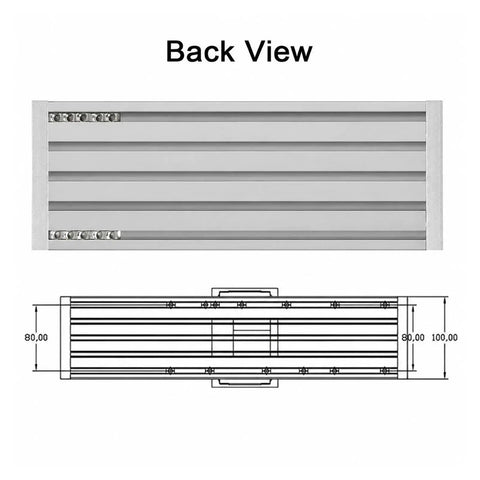

✅ Eighty by hundred twenty millimeter mounting interface plate
✅ Two matched HGR15 profile tracks managing lateral displacement
✅ Two paired HGH15CA linear rollers ensuring friction free carriage shift
✅ Chromium bearingsteel and carbon steel components for rugged uptime
✅ Anodized aluminum foundation engineered for sixty class motor brackets

💡 Why trade standard open frame extrusions for a sealed double slide ball screw module?

You lock in repeatable depth stops and eliminate chassis flex during aggressive material removal.

Prospective builders favor this configuration because:

- Pitch calibrated screws translate angular velocity into measured linear pull

- Embedded guide channels distribute cantilever pressure away from drive motors

- Polished steel runners cut surface resistance to deliver that sweet running feel

✝️
