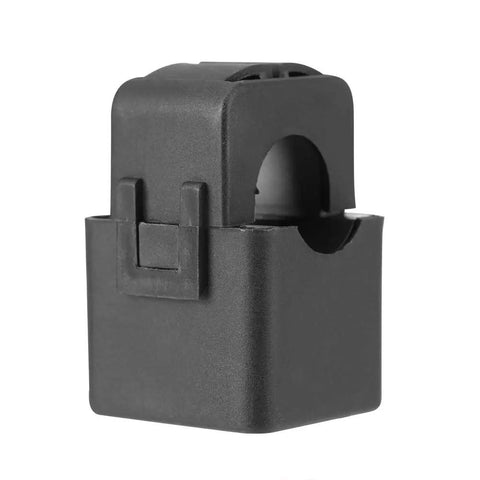

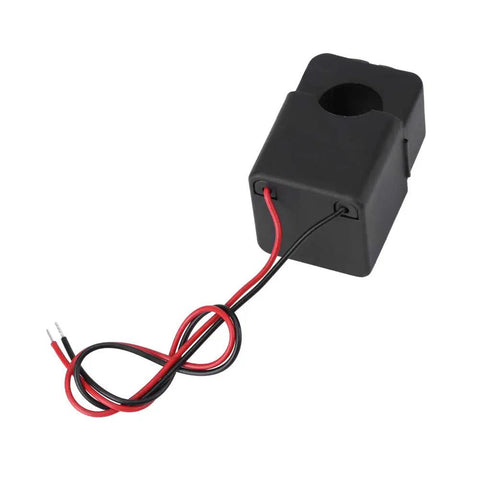

Straight Up Heavy Duty Split Core Current Transformer PZCT-02 100A Energy Meter Clamp Sensor Featuring Quick Snap Joint Mount And Built Tough Fully Enclosed Housing For Zero Hassle Power Tracking

100A Split Core Current Transformer for AC Energy Meters
Ⓠ️ 100A spread core transducer 16mm throat 0.5 precision snap
⨯

This pack of 1 PZCT-02 split core current transformer helps you track AC power flow without interrupting live circulation. Electricians love this handy tool for retrofitting energy monitors on 110v or 220v feeds, as it clamps right over 16mm wires to deliver stable data pulses for billing or load analysis.

• Accuracy hits 0.5 grade across a broad measuring range from zero to one hundred amperes

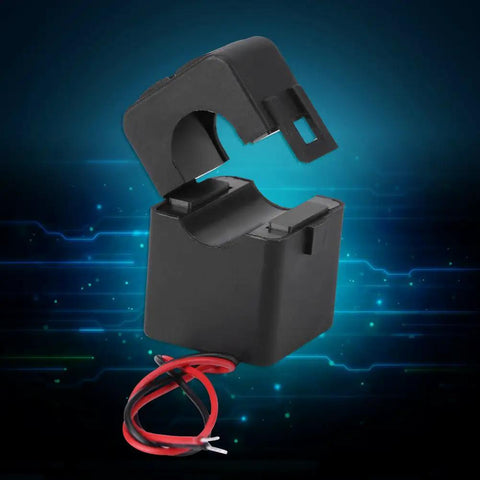

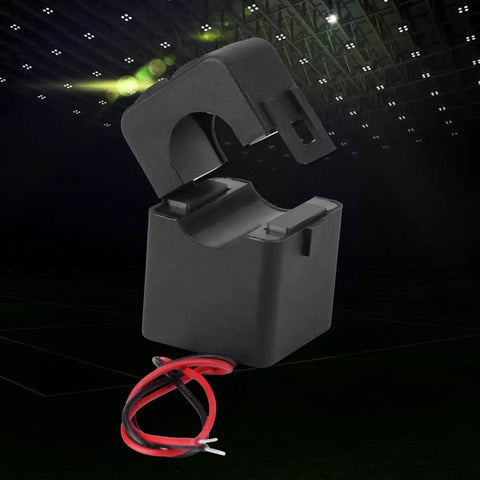

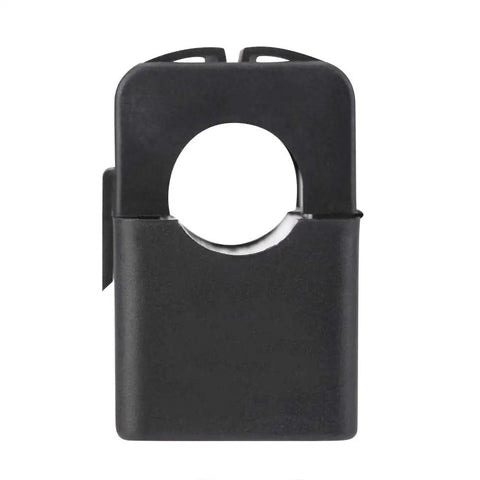

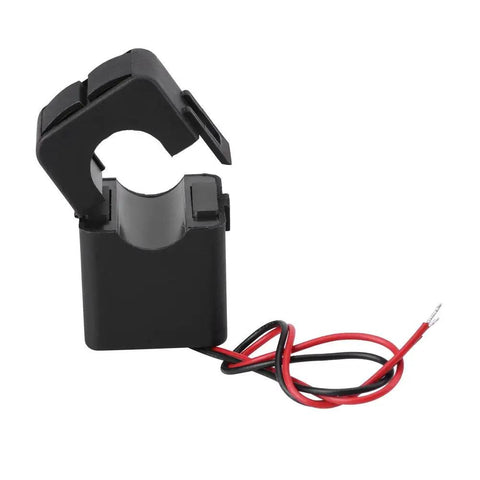

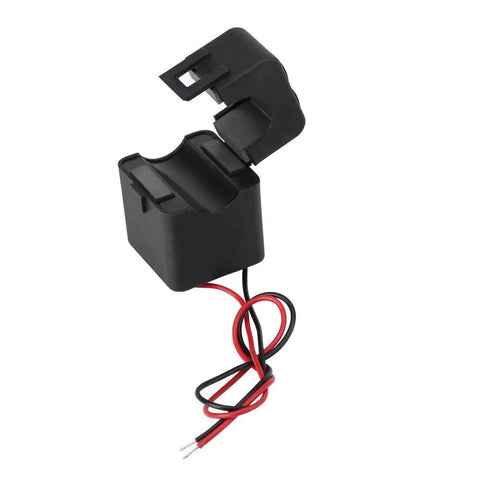

• One centimeter six millimeter internal bore accepts round conductors via quick snap assembly
• Rated dielectric strength supports up to one kilovolt test voltage for robust isolation reliability
• Enclosed polypropylene shell protects against moisture and meets UL v0 fire safety standards

⨯

💡 What is the proper way to connect the secondary outputs of a split core transformer for safe operation? The wiring process is straightforward and lets you get accurate readings fast as long as you treat the secondary coil with care. Pay attention to these key installation points:

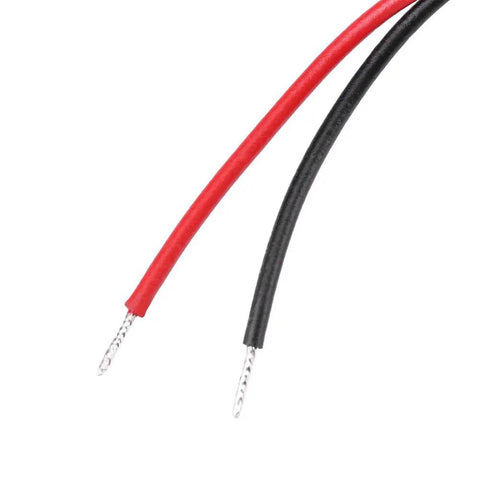

• Daisy chain the secondary leads directly into your measurement device keeping every connection tight and secure
• Avoid open circuits at all costs because breaking the loop induces lethal voltage spikes that damage gear
• Verify frequency alignment matches your local fifty or sixty hertz grid to ensure correct signal conversion
• Confirm primary wire sits centered in the yoke gap so mutual inductance transfers current efficiently

✝️
