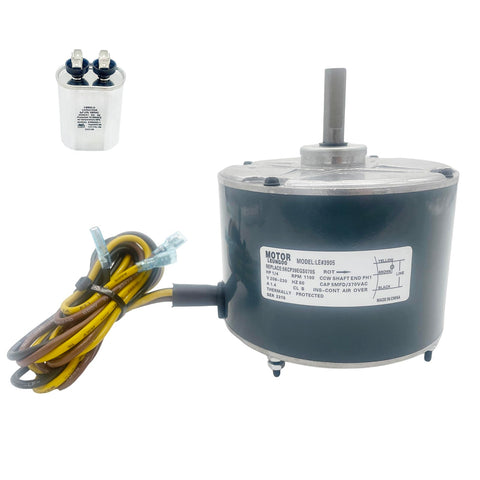

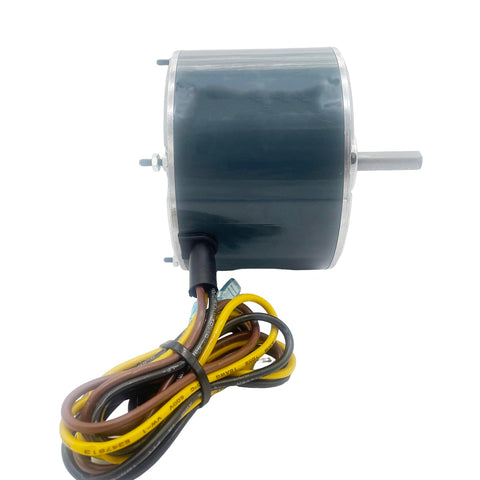

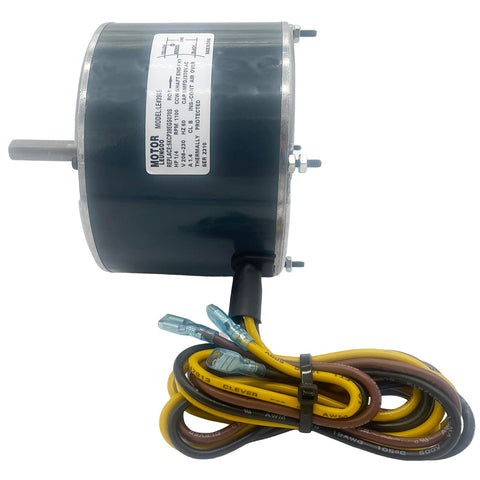

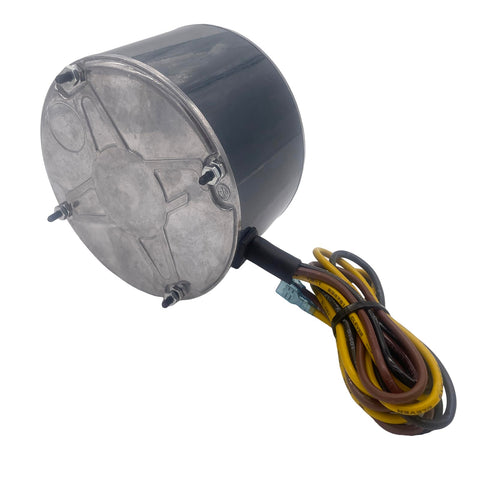

Straight Up 1/4 HP AC Condenser Fan Motor 208-230V 1100 RPM Simple Swap Replacement For Carrier And Bryant HVAC Equipment With Matched Capacitor And CCW Shaft

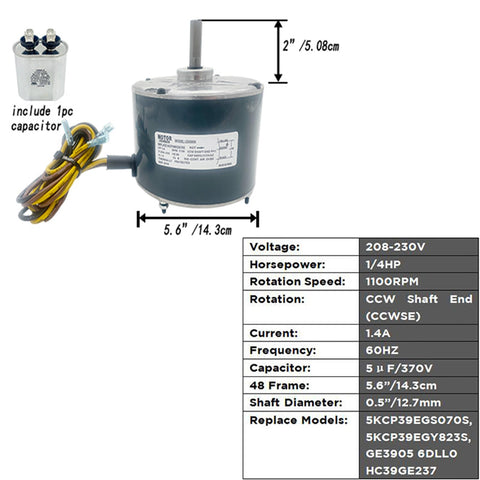

✔️ 1/4HP 1100 RPM 208-230V CCW 1/2 Shaft With 5uF Capacitor
This 1/4 horsepower condenser fan motor replaces a worn-out unit on your air conditioner. You get a direct swap part for Carrier Bryant outdoor systems. The motor drives your cooling coil to maintain comfort indoors during hot days.
✅ 1/4 HP power moves plenty of air through your condenser coil assembly.✅ Operates at 1100 RPM on 208-230V circuits drawing 1.4 amps steady.

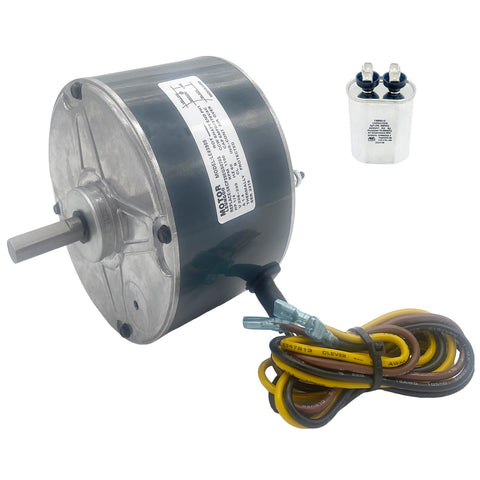

✅ Box comes with a 5 μF / 370 V capacitor ready for installation.

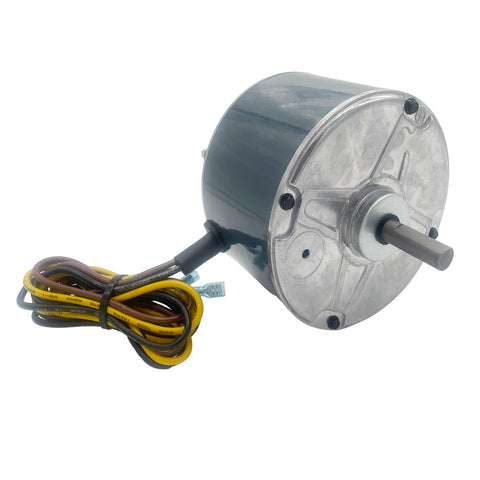

✅ Shaft turns counter-clockwise facing the pulley side with a 1/2 inch bore.
✅ Mounts in a standard 48 frame housing measuring 5-5/8 inches body dia.
✅ Swaps directly into compatible Carrier Bryant Payne and Dayton equipment sets.
✅ Backed by a 2-year limited warranty covering manufacturing defects fully.
💡 What signs indicate a condenser fan motor needs replacement on an HVAC unit?
- Loud buzzing noises from your outdoor cabinet scream burnt windings, and that grind ruins your cooling fast.
- Spot the blade loafing slow while the system sweats heat because the rotor lost its mojo down the shaft.
- Pop a multimeter on the capacitor wires to see if the resistance reading reads dead like a fish no matter how hard you try.
- Grumpy bearings cause friction drag that trips thermal breakers and leaves the whole setup hanging out to dry.
