Stepper Motor Driver DM556S Kit With CBX1605 Linear Stage 1605 Ball Screw Square Linear Rail Motorized XYZ Slider Table For CNC 300mm Travel Beefed Up Precision Motion Pro Grade

CNC Stepper Drive Kit with CBX1605 Linear Stage 300mm Travel
✔️ Nema23 motor, CBX1605 screw, 300mm travel, DM556S single kit

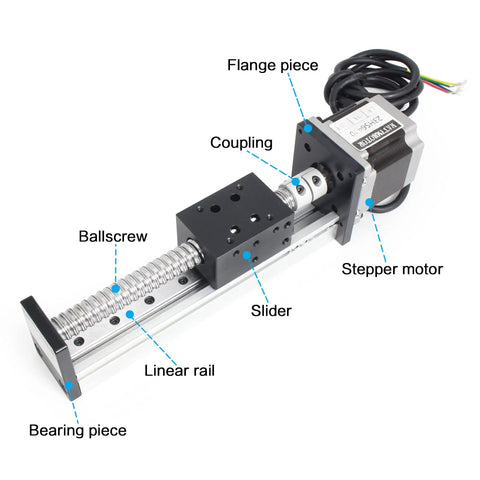

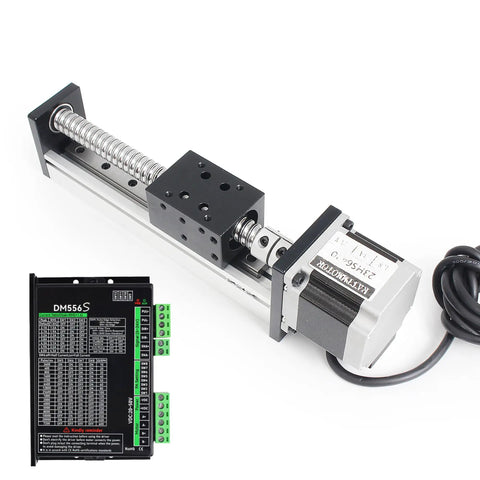

The kit combines a Nema23 stepper motor, CBX1605 ball screw, 60 mm slide block, 6030 aluminum base, and a DM556S driver, delivering a compact linear stage for CNC, engraving, and laser work. Perfect for hobby shops and desktop setups where precise travel and repeatable motion matter.

✅ Nema23 motor: holding torque 1.2 Nm, current 3A, resistance 0.8 ohm, inductance 2.4 mH; length 56 mm, flange 57 mm; wiring Red A+, Green A-, Yellow B+, Blue B-.
✅ CBX1605 ball screw: pitch 5 mm, travel 300 mm (11.81 in), precision grade C7.

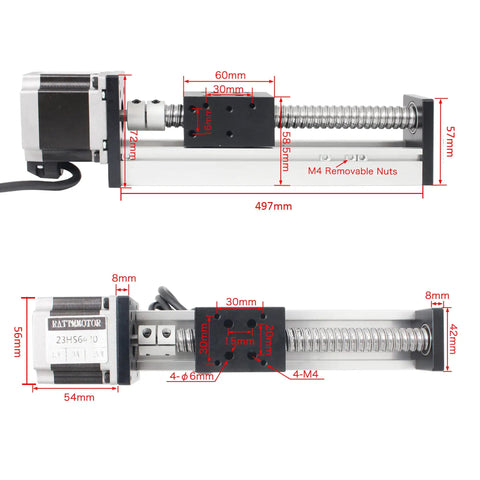

✅ Slide block: 60 mm length, 6030 aluminum, side M4 sliding nut, limit switch position can be set anywhere.

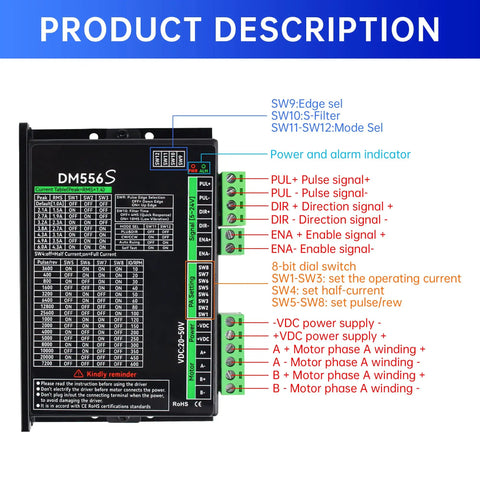

✅ DM556S driver: input 20-50 VDC (24 V recommended), output 1.0-6 A, impulse response up to 500 kHz, supports 4/6/8-wire two-phase motors including Nema17/23/24/34.

💡 What is a compact CNC linear stage used for in home machining with a DM556S controller? Here's a handy, practical overview: - Handy for precise X-Y motion in hobby CNC mills, desktop routers, or laser cutters - Uses CBX1605 ball screw for smooth feed and repeatable positioning - Compatible with Nema17/23/24/34 motors and DM556S for easy setup - Aluminum 6030 base and 60 mm slider block provide solid rigidity

✝️
