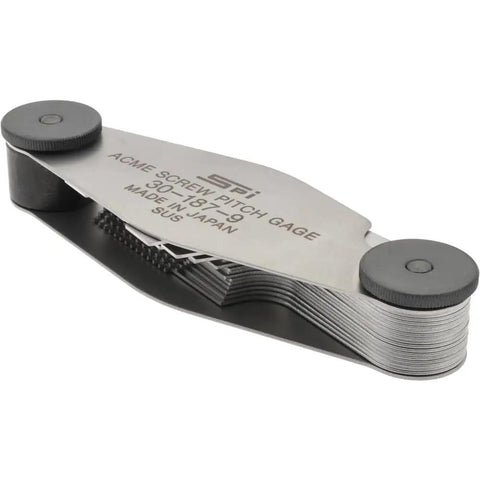

Stainless Steel Acme Screw Pitch Gauge With 16 Leaves For 1 To 12 TPI And 29 Degree Thread Angle Swing Out Leaves For Quick Measurements And Easy Storage Pro Grade Handy Three And One Half Inch Overall Length

Single Unit: Stainless Pitch Gauge with 16 Leaves
✔️ 16 leaves for inch Acme pitch 1 to 12, 29 degree angle, 3.5

This compact measurement tool identifies Acme screw pitch leaves and is ideal for workshop, machine shop, or field service environments where quick, accurate checks are needed.

✅ Stainless steel leaves resist corrosion and provide durable, repeatable measurements

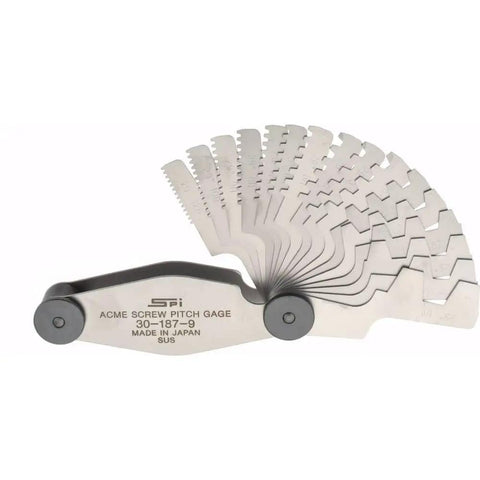

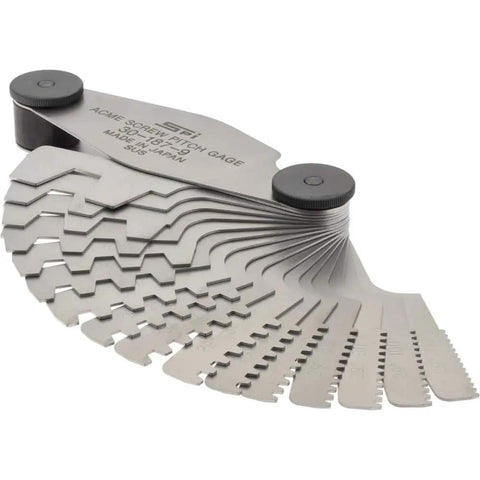

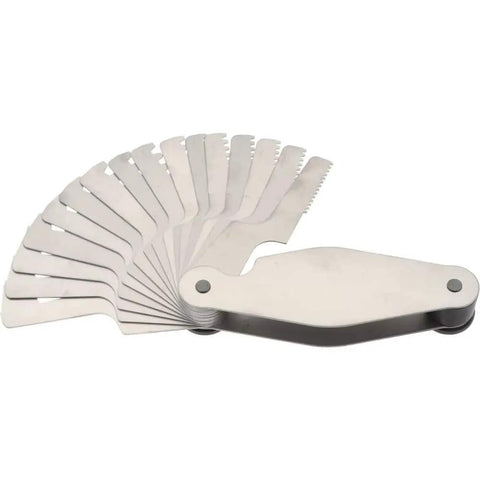

✅ Swing-out leaves allow fast use and fold back into the holder for storage
✅ Includes 16 pitch leaves for inch Acme threads: 1, 1-1/3, 1-1/2, 1-3/4, 2, 2-1/2, 3, 3-1/2, 4, 5, 6, 7, 8, 9, 10, 12
✅ Overall length 3-1/2 inches; leaf length roughly 1-3/16 to 1-3/4 inches, thickness 0.03 inches

💡 What is a screw pitch gauge used for with Acme threads? This handy tool helps quickly verify pitch and compatibility across a range of applications. - handy for quick pitch checks on Acme screws used in machinery and equipment - helps ensure proper fit and alignment during assembly and repair - useful for maintenance and quality control tasks

✝️
