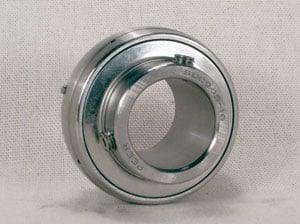

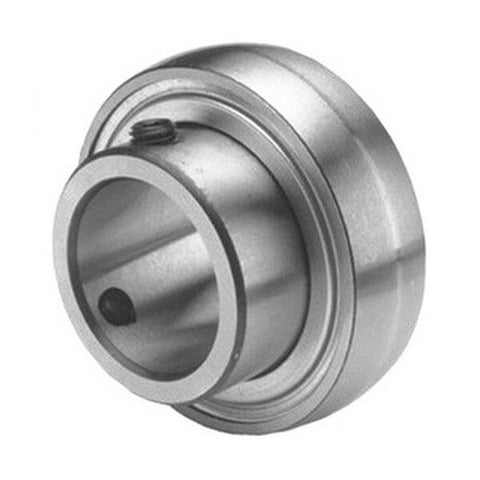

SSUC204-12 High Temperature Stainless Steel Insert 3/4" Bore Bearing

$68.99
SKU: SSUC204-12-HT
UPC: 00193019327937
Item: SSUC204-12-HT
Type: Insert Ball Bearing
Temperature: High Temperature 300 Degrees F
Brand: VXB Bearing
Material: Stainless steel
SSUC204-12 High Temperature Stainless Steel Insert 3/4" Bore Bearing
3/4" x 47mm x 31mm
VXB Bearing




SUC204-12 High Temperature Stainless Steel Insert Ball Bearing, bearing is wide inner ring with spherical outer ring, bearing is relubrication groove with oil hole on set screw side, bearing is anti-rotation pin on side opposite grease groove, it has supplied with water/wash resistant

  • Item: SSUC204-12-HT
  • Type: Stainless Steel Insert Ball Bearing
  • Shaft Diameter: 3/4" inch
  • High temperature up to 300 Degrees F
  • Dynamic load rating: 10320 N
  • Static load rating: 5018 N
  • Brand: VXB Bearing
  • Quantity: One Bearing

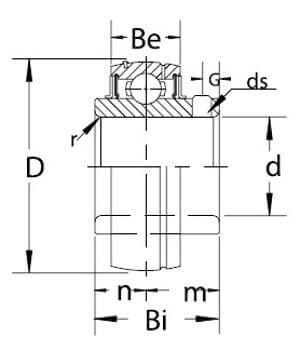

Dimensions (inches)
D Bi Be r n m G ds (Unf-Thread)
1-17/20" 1-11/50" 11/16" 1/32" 1/2" 23/32" 13/64" 1/4-28x1/4
