SQZ12 Ball Joint M12 Rod End Bearing - Straight Type
SQZ12 Ball Joint Rod End Bearing
✔️ M12 Straight Shape - Spherical Rod End, 12mm Bore
The SQZ12 straight-shape ball joint rod end bearing is designed for smooth rotational and oscillating motion in mechanical linkages. It features a spherical inner ring for precision movement without play, making it ideal for applications with misalignment or vibration.
✅ Thread type: M12 x 1.25
✅ Inner diameter: 12mm
✅ Outer diameter (d1): 32mm
✅ Overall length (L): 74.5mm
✅ Spherical slide design for free, low-friction movement
✅ Grease-lubricated for long-lasting performance
✅ Quantity: 1 bearing
✅ Load rating: 11
✅ Ideal for linkages, actuators, and suspension components

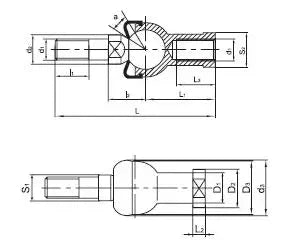

| Type | d | d1 | d2 min | d3 max | l1 min | l2 | S1 | L max | L1 | L2 max | L3 min | D1 max | D2 max | D3 max | S2 | a |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SQZ12 | 12 | M12X1.25 | 17 | 32 | 17 | 21 | 15 | 84 | 40 | 6.5 | 20 | 17.5 | 22 | 32 | 19 | 15 |
💡 What are rod end bearings used for?
Rod end bearings are perfect for mechanical setups where pivoting, articulation, or misalignment occurs - such as in control arms, actuators, or steering links.
A solid choice for dynamic systems that demand smooth, flexible, and accurate joint motion.
