SQL12RS-1 L-Ball Rod Ends 12mm Bore

No reviews
$24.95
SKU: Kit14004
Item: SQL12RS-1 Bearing
Type: L-Ball Rod Ends
Quantity: One Bearing
Static load Capacity: 11 KN

L-Ball Rod Ends SQL12RS-1
12mm Inner Diameter



L-Ball Rod Ends SQL12RS-1, inner diameter is 12mm, the internal thread size is M12x1.75, Here is the interchange designation in every brand:

  • Item: SQL12RS-1 Bearing
  • Type: L-Ball Rod Ends
  • Quantity: One Bearing
  • Static load Capacity: 11 KN

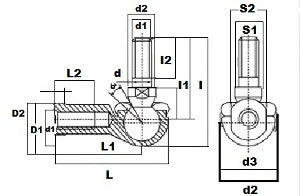

Dimensions (mm)
d d1 d2 d3 I I2 I3 S1 L L1 L2 D1 D2 D3 S2
12 M12x1.25 17 32 17 21 15 91 40 6.5 20 17.5 22 32 19
