VXB

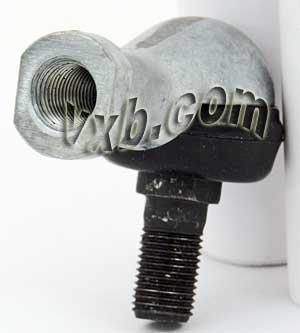

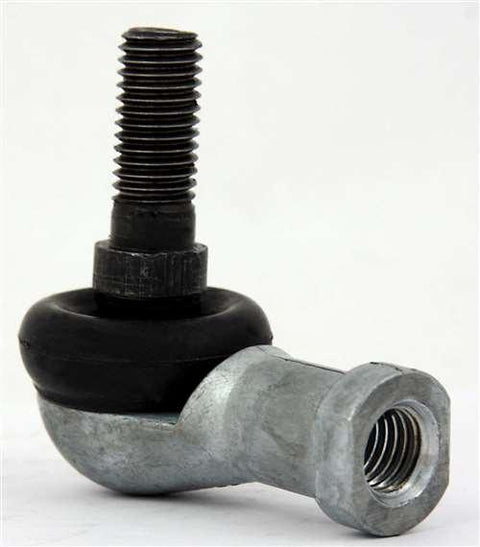

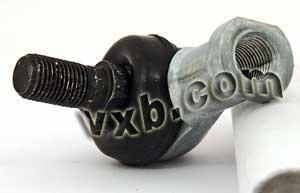

SQL10RS L-Ball Rod Ends 10mm Bore

$34.99
SKU: Kit14001
UPC: 00193019214572
Item: SQL10RS Bearing
Type: L-Ball Rod Ends
Quantity: One L-Shape Rod end
Static load Capacity: 8.4 KN

L-Ball Rod Ends SQL10RS
10mm Inner Diameter



L-Ball Rod Ends SQL10RS, inner diameter is 10mm, the internal thread size is M10x1.25, Here is the interchange designation in every brand:

  • Item: SQL10RS Bearing
  • Type: L-Ball Rod Ends
  • Quantity: One L-Shape Rod end
  • Static load Capacity: 8.4 KN

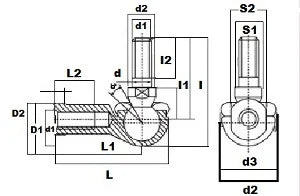

Dimensions (mm)
d d1 d2 d3 I I2 I3 S1 L L1 L2 D1 D2 D3 S2
10 M10x1.25 14 30 15 19.5 11 74.5 35 6.5 18 15 19 28 17
