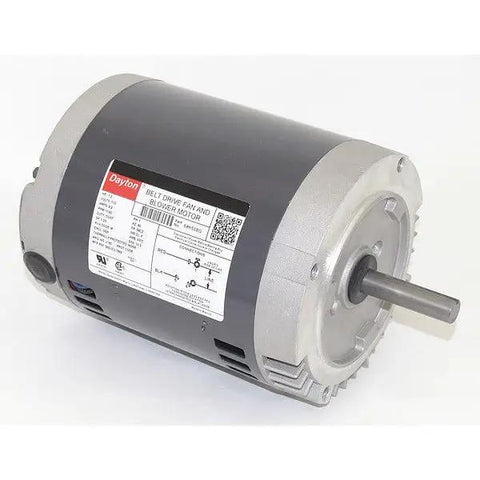

Split-Phase Belt Drive Fan Motor Workhorse, 1/2 HP, 1140 RPM, 115V AC, 60 Hz, Single Phase, 9.2A Full Load, 56CZ Frame, Continuous Duty, Service Factor 1.25, Insulation Class B, 40C Max Ambient, No Thermal Protection
✔️ 1/2 HP split-phase, 1140 RPM, 115V AC, 60 Hz, 56CZ frame, open drip
Durable fan motor designed for belt-drive HVAC blowers and air handlers. This single-phase motor is built for continuous operation in moderate ambient temps, with a C-face mount and open drip proof enclosure for versatile installation.
✅ 1/2 HP split-phase motor, 1140 RPM, 115V AC, 60 Hz
✅ Frame 56CZ, shaft diameter 5/8 in (15.9 mm)
✅ Open Drip Proof enclosure; CW/CCW shaft rotation
✅ Service Factor 1.25; insulation class B; ambient 40C max
✅ Mounting: C-face, all-angle orientation; single-phase operation
✅ Duty: Continuous
💡 What is a split-phase belt-drive motor used for in HVAC blower systems? This handy design powers fans in air handlers and ductwork. - Handy for 115V single-phase installations in furnaces and air handlers - Easy installation and maintenance in belt-driven blowers - Built for continuous duty with a solid service factor and open drip proof design
