Spiral Wound Gasket Inconel 600 Flexible Graphite For High Temperature Variations And Thermal Cycling On 10 Inch Pipe Size Class 400 Flange With Centering Ring For Precise Location And Extra Radial Strength

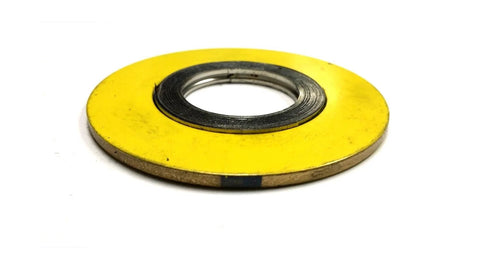

Spiral Wound Gasket with Graphite filler, Inconel 600, 10 in
✔️ 10 in pipe (254 mm), Class 400, ASME B16.20/16.5, single gasket

This spiral wound gasket is built for high-temperature variation and frequent thermal cycling on ASME B16.5 Class 400 flanges. It uses Inconel 600 windings paired with a flexible graphite filler and includes a centering ring to ensure precise placement and added radial strength. It’s a reliable choice for demanding piping systems in chemical processing, refineries, and power generation where dependable seals are crucial.

✅ Spiral wound gasket with Inconel 600 windings and flexible graphite filler
✅ 10 in pipe size, Class 400 flange compatibility
✅ Temperature range -150 to 850 F (-102 to 454 C)
✅ Centering ring for precise location and added radial strength
✅ Durable and easy installation and removal

💡 What is a centering ring's role in a spiral wound gasket on a Class 400 flange? This handy explainer covers alignment and sealing under pressure.

- Centering ring locates gasket precisely on flange face - It adds radial strength to resist bolt load and improve sealing - It helps prevent leakage during thermal cycling - Works with Inconel 600 windings and graphite filler for wide-temp seals
