Spiral Wound Gasket For ASME B16.20 Flanges 26 Inch With Heavy Duty Flexible Graphite Filler And 304 Stainless Steel Shell 26.50 Inch ID 30.50 Inch OD Teadit 900026A304GR150
✔️ 26 in bore, 150# flange, 304SS windings, graphite filler

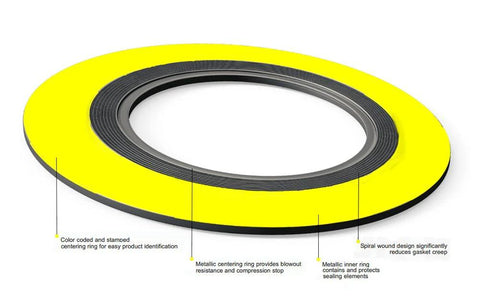

This spiral wound gasket is designed for ASME B16.20 and ASME B16.47 Series A Class 150 flange connections, delivering a tight seal in demanding piping systems such as oil, gas, chemical processing, and power generation. The centering ring locates the gasket precisely on the flange face, provides additional radial strength, and acts as a compression limiter, making installation quick and reliable in the field.
✅ Size: 26 in nominal; ID 26.50 in (673.1 mm); OD 30.50 in (774.7 mm)✅ Flange compatibility: ASME B16.47 Series A Class 150
✅ Construction: Spiral wound gasket with 304SS windings and flexible graphite filler; centering ring for alignment and compression control
✅ Temperature range: -150 to 842 °F (-101 to 450 °C)
✅ Material & color: 304 stainless steel shell, flexible graphite filler; Yellow Band with Gray Stripe
✅ Pack size: 1 gasket per package
💡 What is a spiral wound gasket used for in piping systems? This handy seal is built for high-pressure, high-temperature joints on ASME B16.20 and B16.47 Series A Class 150 flanges.
- Seals effectively with metal windings and flexible graphite filler across a wide temperature range
- Centering ring aligns gasket and controls compression for easy installation
- Handles oil, gas, chemical, and power industry piping in tough environments
- Offers reliable, long-term performance in demanding service
