Spiral Wound Gasket With Flexible Graphite For High Temperature Variations And Thermal Cycling On ASME B16 20 Gasket Sets For ASME B16 47 Series A Flanges 36 Inch 150 Pound Class 304 Stainless Steel Centering Ring Sur Seal Teadit 900036A304GR150
✔️ 36 inch, 150# Series A gasket with 304 SS windings and graphite

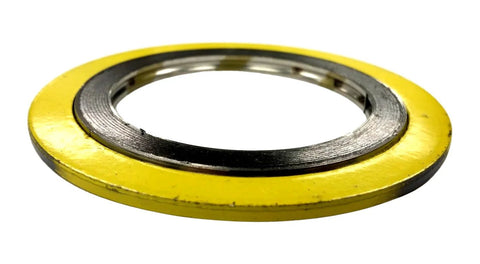

This spiral wound gasket is built for high-temperature variations and thermal cycling on ASME B16.47 Series A flanges, 36 inch pipe size (914 mm) and 150# class. It uses 304 stainless steel windings with a flexible graphite filler and includes a centering ring to accurately locate the gasket on the flange face, boosting radial strength and acting as a compression limiter.
✅ 36 inch pipe size
✅ 150# class
✅ ASME B16.47 Series A compatibility
✅ Spiral wound gasket with flexible graphite filler
✅ 304 stainless steel windings
✅ Centering ring for precise alignment
✅ Temperature range: -150 to 842 °F
✅ Color: Yellow band with Gray stripe
💡 What is a spiral wound gasket with graphite filler used for in high temperature piping systems? This handy seal handles heavy thermal cycling and demanding service on flange connections. - Provides leak-tight seals in high-temperature and high-pressure environments - Combines metal windings with graphite filler for chemical compatibility and strong sealing - Includes centering ring to improve alignment and compression control
