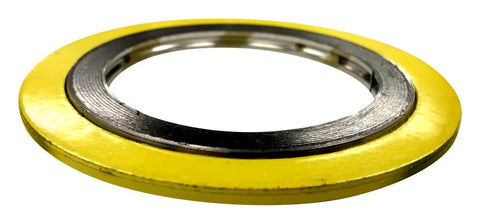

Spiral Wound Gasket 900048A304GR600 Teadit For 48 Inch Pipe Size 600 Class ASME B16 20 And ASME B16 47 Series A Flanges Built Tough With 304 Stainless Steel And Flexible Graphite FG Construction Centering Ring Thermal Cycling And Pressure Variation Ready

48in Spiral Wound Gasket, 1 piece, 600 Class, 304SS FG
✔️ 48in gasket for ASME B16.20/47, 26in pipe size, FG core

This spiral wound gasket is designed for ASME B16.20 gasket assemblies on ASME B16.47 Series A flanges with Class 600 ratings. Ideal for large-diameter piping in chemical, oil and gas, and power plants, it seals joints under thermal cycling and pressure variation. The gasket uses 304 stainless steel windings with a flexible graphite filler and a centering ring to locate the gasket precisely and constrain compression for long service life. 26 inch pipe size (660 mm) is supported by the 304SS windings and FG filler for durable sealing.

✅ 26 inch pipe size, Class 600 flange
✅ 304SS windings with Flexible Graphite FG filler
✅ Centering ring locates gasket precisely and limits compression
✅ Temperature range -150 to 842 °F (-101 to 450 °C)
✅ Color: Yellow band with gray stripe

💡 What is a spiral wound gasket used for in ASME piping systems? This handy seal handles high pressure and temperature in large flange joints.

- For ASME B16.20 and B16.47 Series A Class 600 flange connections - Combines metal windings with flexible graphite filler for dependable sealing - Centering ring locates the gasket and limits compression for longevity - Works across a wide temperature range from -150 °F to 842 °F (-101 °C to 450 °C)
