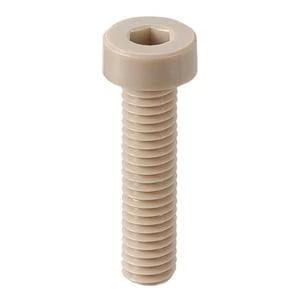

SPE-M6-30-LC NBK Plastic screw - Hex Socket Low Head Bolt - PEEK Japan Made, front view showing hex socket head.

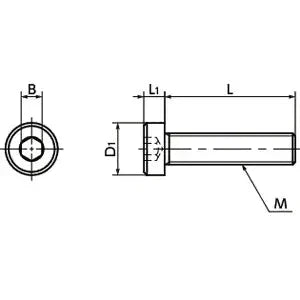

SPE-M6-30-LC NBK Plastic screw - Hex Socket Low Head Bolt - PEEK Japan Made technical drawing with dimensions.

NBK

SPE-M6-30-LC NBK Plastic screw - Hex Socket Low Head Bolt - PEEK - Made in Japan

$99.99 $200.00you save $100.01
SKU: SPE-M6-30-LC-NBK
Item: SPE-M6-30-LC-NBK
Plastic screw - Hex Socket Low Head Bolt - PEEK
Quantity : 5 Screws
NBK Made in Japan
5-7 days shipping
SPE-M6-30-LC NBK Plastic screw - Hex Socket Low Head Bolt - PEEK
Made in Japan
5 Screws

Characteristics:
  • Hex socket head cap screw with low head.
  • For space-saving of equipment/device and applications with a limited top space.
  • PEEK is thermoplastic super engineering plastic superior in physical and chemical properties.
  • Excellent chemical resistance. It resists almost all chemicals other than concentrated sulfuric acid, concentrated nitric acid and concentrated hydrofluoric acid.
  • It is highly heat-resistant and water-proofed and high temperature strength is retained.
  • Features outstanding friction, shock, and fatigue resistance.
  • It is highly frame-resistant satisfying V-0 of the UL standard 94.
  • Plastic screw properties and precautions for use √¢‚Ä°‚ÄôPlastic Screws
Application:

FPD production device / Semiconductor manufacturing device / Print board etching equipment / Metal surface treatment facility / Chemical plant / Transformer / Electric and electronic device / Hydrothermal pump / Chemical pump




Part Number M L D1 L1 B Tension Rupture
Load(N) 		Torsional Torque
(N-m)
SPE-M6-30-LC-NBK M6 3MM 10MM 4MM 4MM 1666 N 1.72 N.M
