Characteristics
- PEEK is a thermoplastic super-engineering plastic with excellent physical and chemical properties.
- These screws have excellent chemical resistance. They are mostly unaffected by chemicals excluding concentrate sulfuric acid, concentrate nitric acid, and concentrate hydrofluoric acid.
- These screws have excellent heat resistance, water resistance, and high heat resistance strength.
- These screws have excellent abrasion, shock, and fatigue resistance.
- They have high incombustibility that meets V-0 of UL 94.
- The properties and precautions of plastic screws
- Plastic screw properties and precautions for use

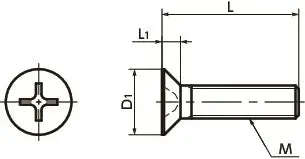

| Part Number |
M |
L |
D1 |
L1 |
Tension Rupture Load
(N) |
Torsional Torque
(N.m) |
Qty /pack
|
| SPE-M5-25-F-NBK |
M5 |
25mm |
10mm |
2.8mm |
1230 N |
1.28 Nm |
10 |
|
