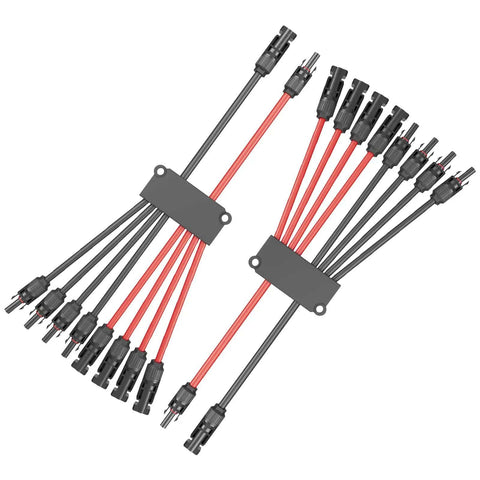

Solar Y Branch Connectors Set For 2 To 8 Panels, Parallel Connectors For 2 To 4 Solar Modules, 10 AWG Main With 12 AWG Branch Wires, IP67 Waterproof, 30 Amp 1000 Volt DC, Includes Male To Four Female And Female To Four Male Adapters

Y-Branch Solar Connector Set for 2-8 Panels, 30A IP67

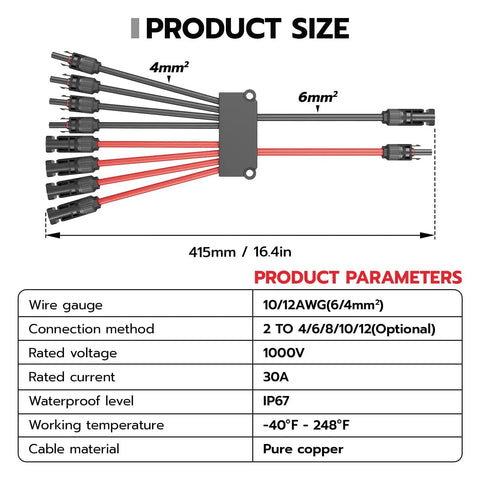

✔️ 30 A, 1000 VDC, IP67, 0.4 m length, 6 mm² main, 4 mm² branches

This Y-branch connector kit is designed to join multiple solar panels in parallel, ideal for grid-tied systems, RVs, and off-grid installs. It's built to endure outdoor exposure with IP67 waterproof rating and UV resistance.

✅ 0.4 m length

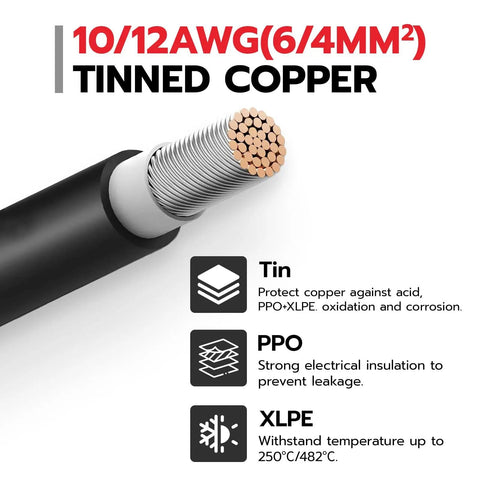

✅ Main line 6 mm² (10 AWG); branch lines 4 mm² (12 AWG)

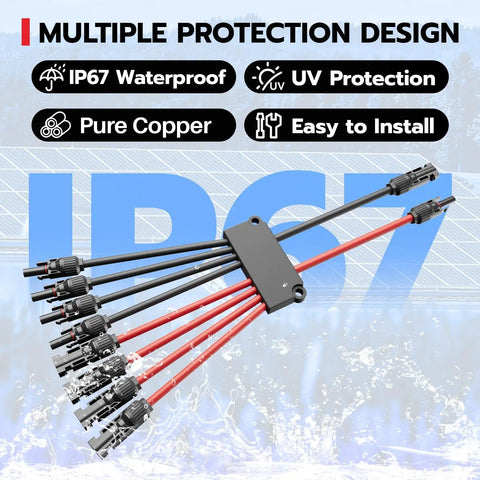

✅ IP67 waterproof housing (PC and PPO) with dual sealing rings
✅ Includes 1 M/FF and 1 F/MM adapters for 2-4 panel parallel wiring

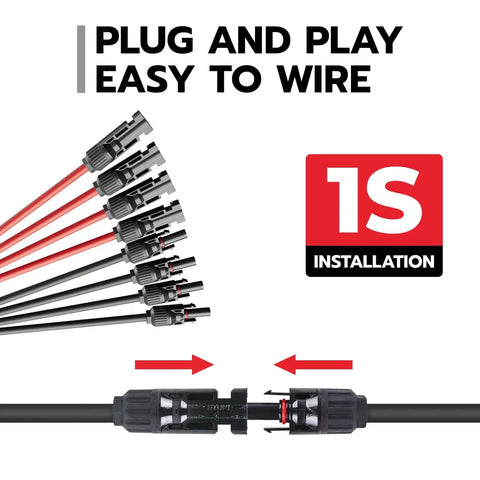

✅ Side clips for quick plug/unplug; locking design rated 3000+ cycles
✅ Works from -40°F to 221°F; 30 A, 1000 VDC

💡 What is a handy solar Y-branch connector set used for in parallel panel wiring?
This practical guide explains how it helps tie multiple panels together for higher current while keeping weatherproof connections.

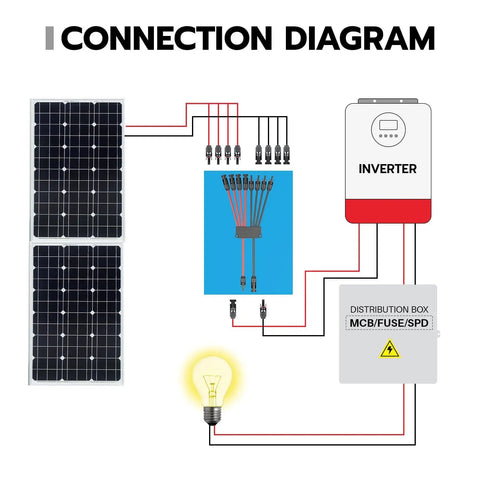

- Handy for parallel wiring of 2-8 panels to boost current
- Includes M/FF and F/MM adapters for flexible setups
- IP67-rated housing protects against dust and water for outdoor use
