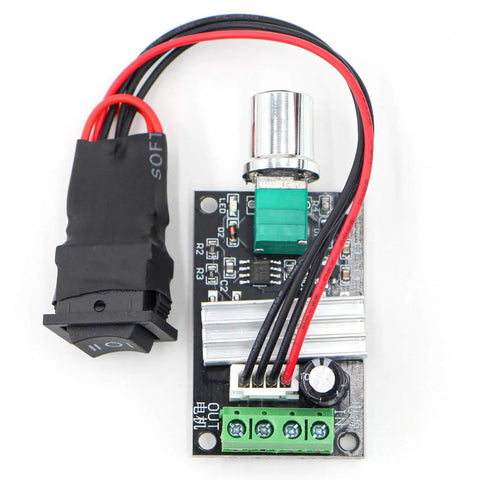

Small PWM DC Motor Speed Controller - for 6V 12V 24V 28V 3A 80W Low-Voltage Gear Motors with Forward/Reverse Switch Control

Compact PWM DC motor speed controller for 6-28V gear motors
✔️ 6-28V input, 3A max, 80W max, forward/reverse switch

This compact PWM DC motor speed controller is built for low-voltage brushed motors in small drive systems. It’s handy for robotics projects, model vehicles, and DIY gear motors where you need smooth speed control and a simple forward/reverse switch. Pack size: 1 piece. Connect to a DC power source only; do not use with AC mains.

✅ Input voltage range: DC 6-28V
✅ Maximum continuous output current: 3A
✅ Maximum output power: 80W

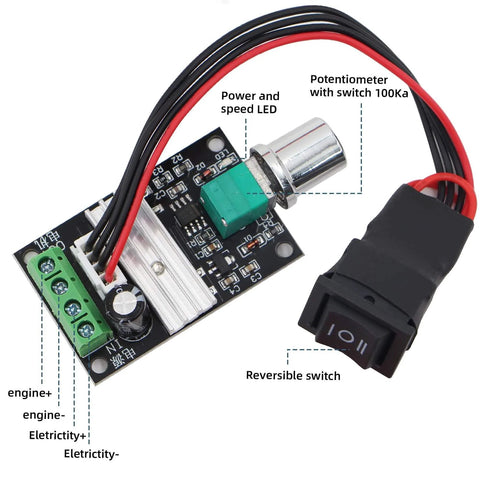

✅ Forward/reverse control with potentiometer switch

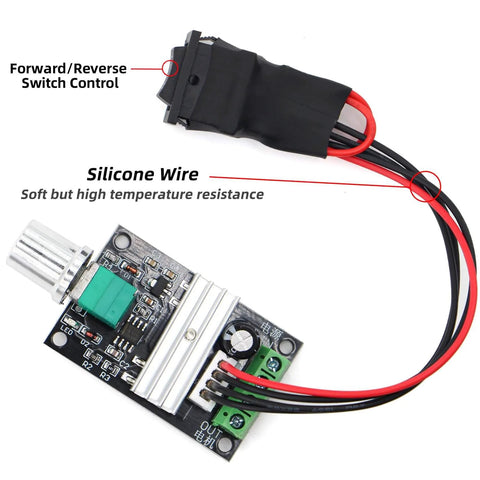

✅ Ultra-soft silicone rubber wire, 15 cm length
✅ Not a voltage regulator; speed controller only; connect to DC power

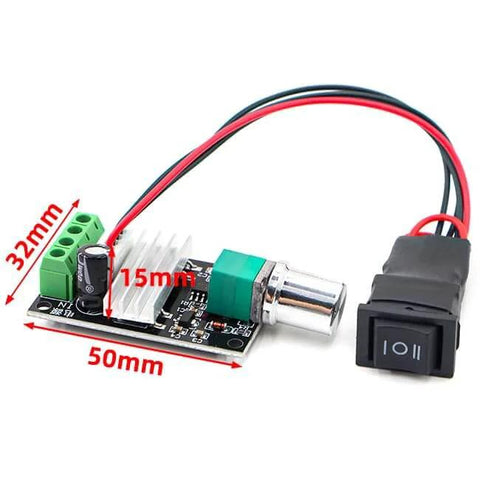

✅ Size: 32mm × 50mm × 15mm (1.3" × 2" × 0.4")
✅ Net weight: approx 1.13 oz
✅ Pack size: 1 piece
✅ Note: Use with DC power source; not suitable for AC mains

💡 What is a PWM DC motor speed controller used for with 6-28V brushed motors?

This handy controller lets you dial in motor speed and direction for small drive systems. - It varies speed by adjusting the PWM duty cycle of the power signal - It provides forward and reverse motion via the built in switch - It requires a DC power supply in the 6-28V range and should not be tied to AC mains - It's ideal for hobby robotics, model cars, and small automation tasks
