NB

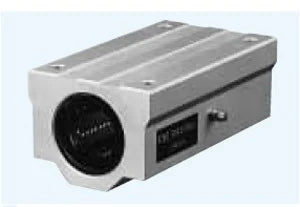

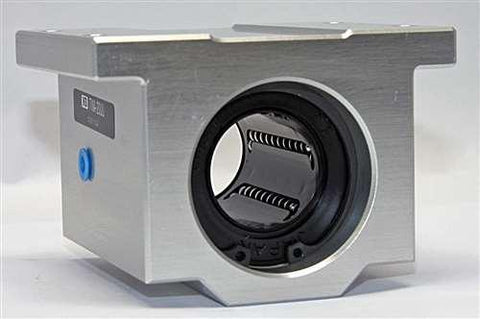

SMA25GWUU NB 25mm Slide Bush Bushings Motion Linear Bearings

$209.99
SKU: Kit21206
UPC: 00193019125106
Item: SMA25GWUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 25mm
Quantity: One Bearing
Dynamic load rating Cr: 980 N
SMA25GWUU NB Double Wide Block Type:Slide Unit
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


SMA25GWUU NB Double Wide Block Slide Unit, The inner diameter is 25mm, Bearing is seals on both sides, The retainer material is resin, Bearing is a high accuracy grade linear bushings, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • Item: SMA25GWUU NB Bearing
  • Type: Linear Ball Bushing
  • Shaft Diameter: 25mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 980 N
  • Static load rating Cor: 1570 N

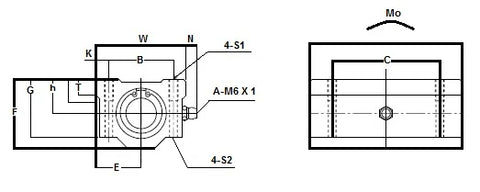

Outer Dimensions Mounting Dimensions
h E W L F G T B C K S1 S2
26 38 76 130 51.5 42 12 54 50 11 M8 7
