NB

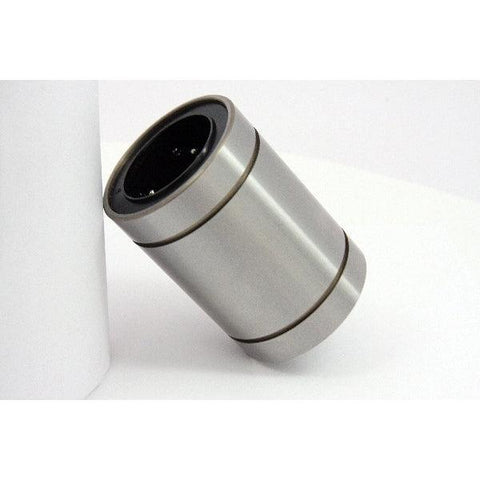

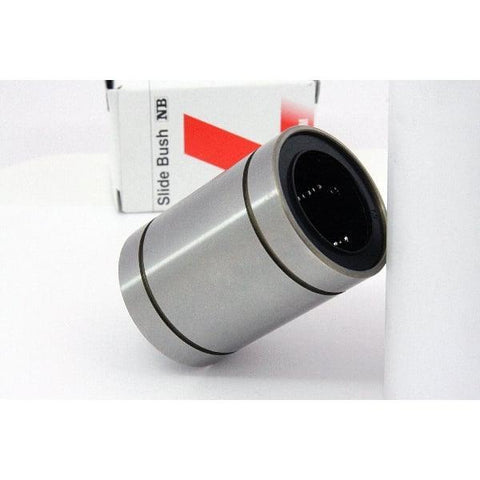

SM5G-P 5mm Slide Bush Ball Linear Miniature Motion Bearings
$19.95
SKU: Kit19729
UPC: 00193019113301
UPC: 00193019113301
Item: SM5G-P Bearing
Type: Linear Miniature Slide Bush
Accuracy Grade: Precision
Number of Ball Circuits: 4
Retain Material: Resin
Type: Linear Miniature Slide Bush
Accuracy Grade: Precision
Number of Ball Circuits: 4
Retain Material: Resin
| SM5G-P Type: Miniature Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Miniature Linear Systems |
5mm Miniature Linear Slide Bush, Retain material is resin, bearing is a Precision accuracy grade Miniature linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

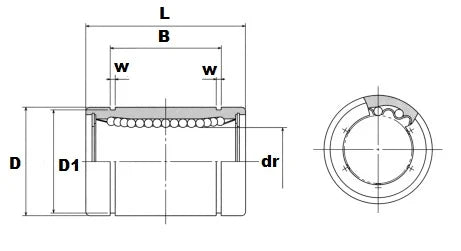

| Major dimensions | Eccentricity | radial clearance | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | Precision | High | ||||||
| mm | tolerance | mm | tolerance | mm | tolerance | mm | tolerance | ||||||
| precision | high | ||||||||||||
| 5 | 0-5 | 0-8 | 10 | 0-9 | 15 | 0-0.12 | 10.2 | 0-0.2 | 1.1 | 9.6 | 4 | 8 | -3 |
