Slick Heavy Duty Type One Electric Vehicle Charging Station Diagnostic Adapter For Testing Level 1 And Level 2 Ac Systems With Gfci And Ground Safety Checks Plug Right In

EV Charger Diagnostic Tool for Level 1 and 2 AC
✔️ Tests SAE J1772 compatibility, GFCI, PE ground and CP signals

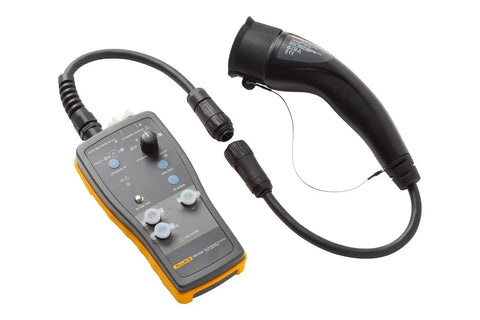

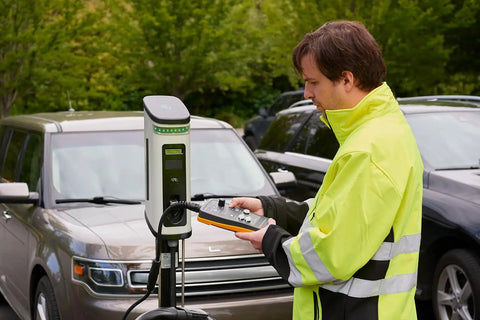

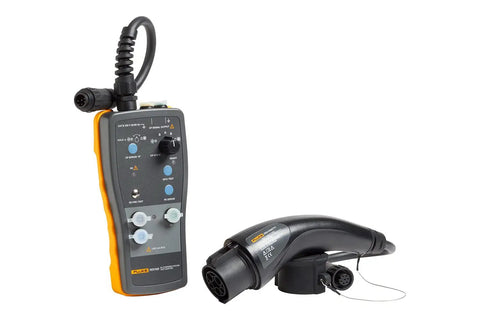

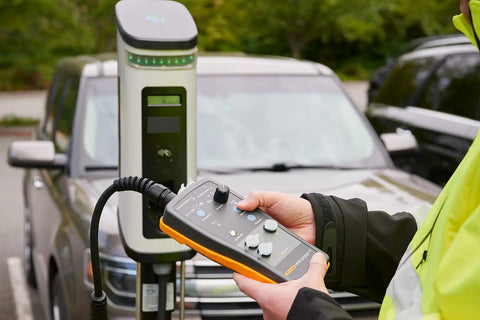

This handy Type 1 plug adapter simulates an actual vehicle connection so technicians can run quick diagnostics on public and residential AC charging setups. It plugs directly into Level 1 and Level 2 outlets to check wiring accuracy, ground integrity, and circuit protection before hooking up an expensive EV. Shop owners, fleet mechanics, and EV installers rely on this tool to catch GFCI faults and confirm proper charge point communications without needing the car itself.

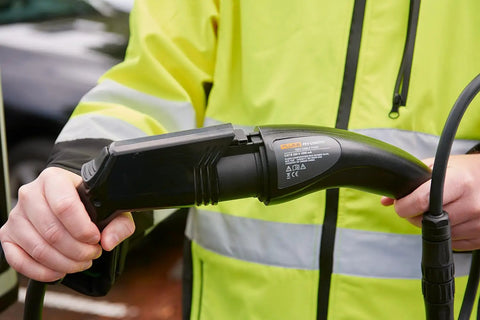

✅ Simulates EV connector for non-invasive safety checks
✅ Validates protective earth continuity with PE pre-test
✅ Triggers GFCI trip verification and resets safely
✅ Switches CP communication stages for fault isolation
✅ Output pins accept multimeter leads for voltage reads

💡 How does a plug-in EV charging station tester prevent electrical hazards during routine maintenance?

A proper adaptive diagnostic unit catches hidden wiring flaws before a real battery pack sees voltage.

- Verifies phase-to-ground potential and confirms the equipment grounding conductor carries fault current without interruption

- Walks through the pulse width modulation sequence so you can spot stuck relays or corrupted control pilot signals

- Forces GFCI boundary tests that reveal slow leakage currents capable of tripping mid-charge sessions

- Lets you probe the contactors directly with a standard multimeter to verify incoming ac potential matches nameplate ratings.
