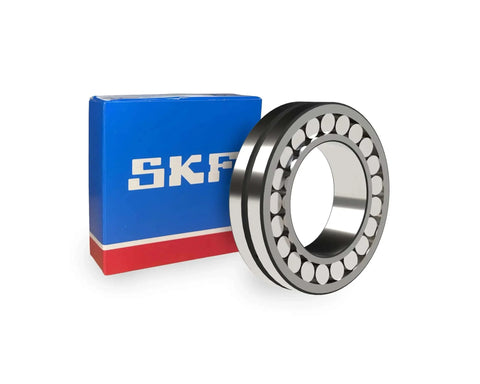

Spherical Roller Bearing 22216 E With Relubrication Features For Heavy Loads In Both Directions SKF Self Aligning Design To Accommodate Misalignment And Shaft Deflections, Low Friction And Easy Maintenance
✔️ High-load, self-aligning design with relubrication features
The SKF 22216 E is a heavy-duty spherical roller bearing designed to handle large radial and axial loads while tolerating misalignment and shaft deflection. It can be used in modular bearing systems with housings, sleeves, and nuts, and includes relubrication features to extend service life.
✅ Bore diameter 80 mm✅ Outside diameter 140 mm
✅ Width 33 mm
✅ Basic dynamic load rating 243 kN
✅ Basic static load rating 270 kN
✅ Reference speed 4,300 r/min
✅ Limiting speed 6,000 r/min
✅ Number of rows 2
✅ Locating feature outer ring
✅ Bore type Cylindrical
✅ Cage Sheet metal
✅ Radial internal clearance CN
✅ Tolerance class for dimensions Normal
✅ Tolerance class for run-out P5
✅ Sealing Without
✅ Lubricant None
✅ Relubrication feature With
✅ Product net weight 2.09 kg
✅ eClass code 23-05-09-11
✅ UNSPSC 31171510
| Dimension | Value |
|---|---|
| Bore diameter | 80 mm |
| Outside diameter | 140 mm |
| Width | 33 mm |
| Weight | 2.09 kg |
| Basic dynamic load rating | 243 kN |
| Basic static load rating | 270 kN |
| Reference speed | 4,300 r/min |
| Limiting speed | 6,000 r/min |
The SKF 22216 E is a heavy-duty spherical roller bearing designed to handle large radial and axial loads while tolerating misalignment and shaft deflection. It can be used in modular bearing systems with housings, sleeves, and nuts, and includes relubrication features to extend service life.
💡 What is a spherical roller bearing used for? This handy guide explains common uses for this bearing type and why it’s a go-to in tough machinery. - Handy for supporting heavy loads in both directions - Good at handling misalignment and shaft deflection - Relubrication features extend service life in demanding settings
