Six Channel DC Power Fuse Distribution Strip Module With DIN Rail Mount, Handles 0 to 32V, Up To 30A Total, Each Channel Up To 3A, Factory 3A Fuses Replaceable To Support Up To 10A, Rugged Plug And Play Power Distribution For Electronics Gear
✔️ 6-channel DC power strip, 0-32V, 30A total, 3A per channel; 1 unit

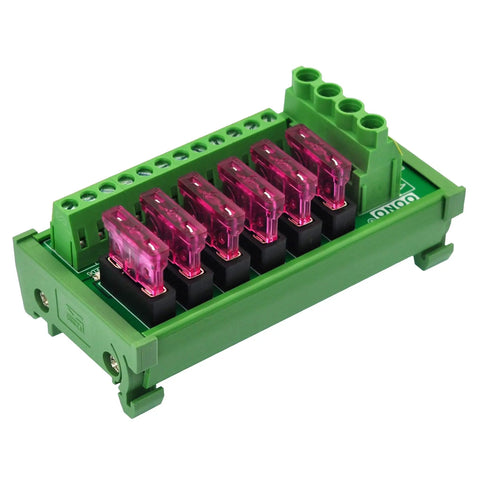

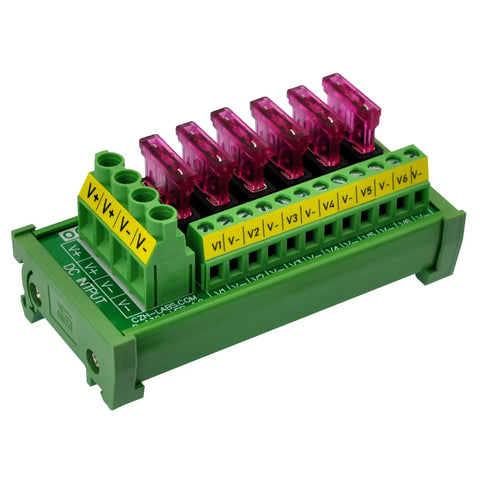

The six-channel DC power fuse distribution strip is a rugged, plug-and-play power hub designed for electronics gear. It mounts on a standard 35 mm DIN rail and provides six fused outputs with replaceable 3A fuses. This module is ideal for robotics, test benches, and prototype builds where clean, bus-powered distribution is needed.
✅ Six outputs rated 0-32V input, total 30A
✅ Per-channel 3A fuse, replaceable to 10A
✅ Input terminals pitch 7.62 mm (0.3 in); wire size 26-10 AWG; M3 screws
✅ Output terminals pitch 5.0 mm (0.197 in); wire size 26-12 AWG; M2.5 screws

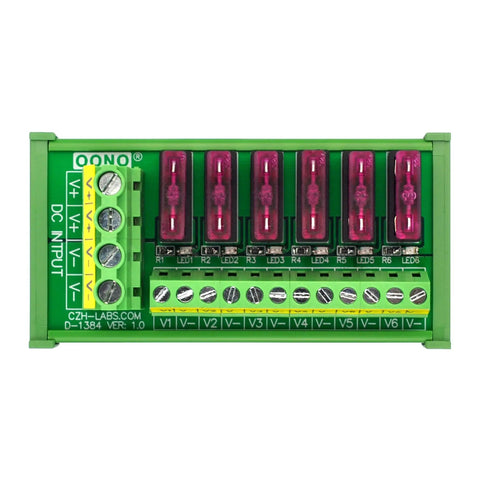

✅ Fuse holders accept ATO/ATC fuses with fail indicator LED

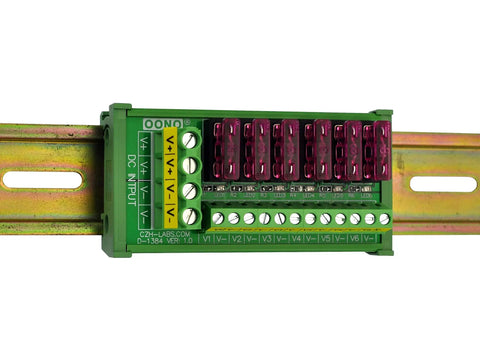

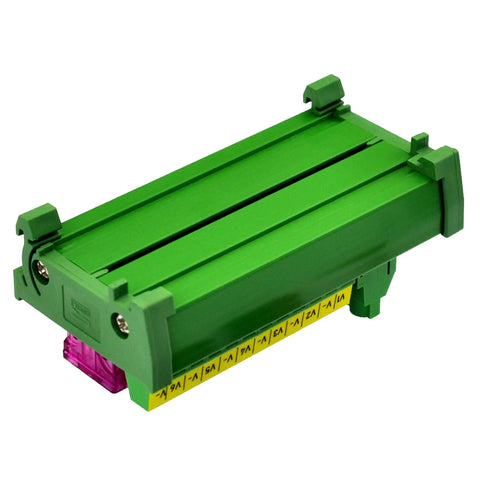

✅ FR-4 fiberglass PCB with dual copper layers and 35 mm DIN rail carrier
💡 What is a DC power distribution strip used for in electronics projects?
Handy solution for distributing power safely and monitoring fuse status.
- Organizes power distribution to multiple devices from one DC source - Protects circuits with replaceable fuses up to 10A per channel - Mounts on a standard 35 mm DIN rail for clean installations - Provides fuse fail indication for quick troubleshooting
