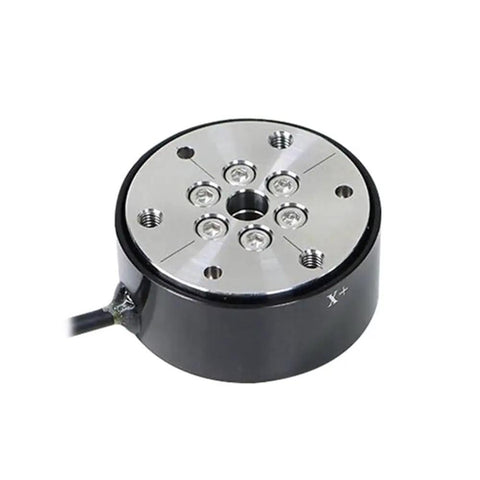

Six Axis Load Cell Sensor For Robotics And Medical Applications, 20N Per Axis And 5Nm Torque, IP65 Pro Grade Built To Last Tough As Nails Multi Axis Force Torque Transducer, 0 To 10V Analog Output Or RS485 Modbus, High Precision Fx Fy Fz Tx Ty Tz

Six Axis Load Cell Sensor: 6-DOF Force/Torque, 1 Pack
✔️ 6 axis sensing up to 200N / 5Nm torque, IP65, dual outputs

The six axis load cell is a compact, high-precision multi-axis sensor designed to measure Fx, Fy, Fz, and Tx, Ty, Tz with excellent repeatability in robotics, biomechanics labs, medical devices, aerospace test rigs, and automated systems.

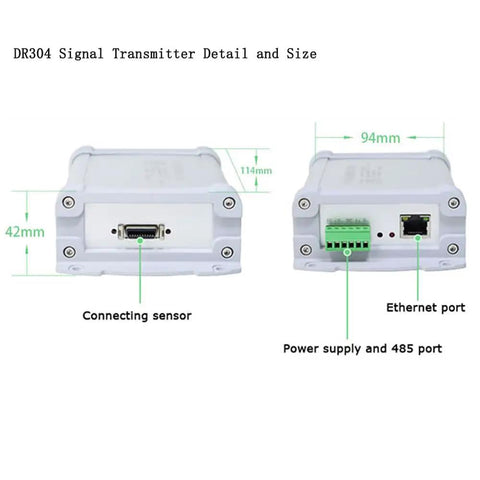

✅ Output options: RS485 Modbus via DR304A or 0-10V six-channel via DR304B
✅ Accuracy: resolution better than 0.1% FS; non-linearity under 0.2% FS
✅ Build & protection: IP65 rated, overload 300% FS, aluminum alloy or 17-4 PH stainless

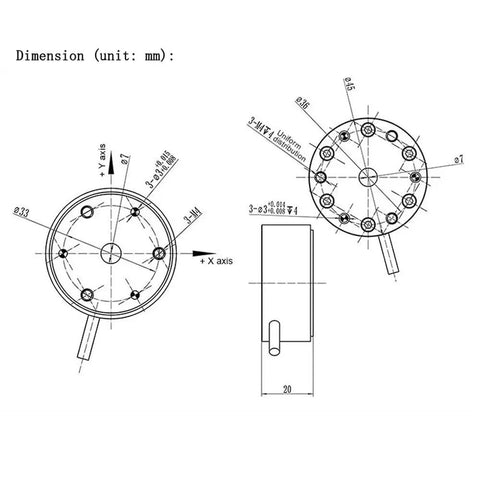

✅ Dimensions & weight: Φ45mm × 20mm, weight ~140 g, 5 m cable
✅ Applications: robotics, biomechanics, medical testing, automation

💡 What is a six axis load cell used for in automation?

- It provides precise multi-axis force and torque data for control loops.
- Handy for robotics end effectors, test rigs, biomechanics studies, and lab automation.
- Compatible with RS485 Modbus or 0-10V interfaces to fit PLCs and DAQs.
- IP65 protection helps in harsh environments.
