Single 3-Phase 5 HP 1750 RPM TEFC Electric Motor 184TC Frame C-Face/Foot Mount, 208-230/460 V 60 Hz, Insulation F, Code J, NEMA 89.5% Eff, sealed ball bearing, industrial

Single 3-Phase 5 HP TEFC 184TC Industrial Motor 1750 RPM
✔️ 208-230/460 V, 1750 RPM, 184TC frame, TEFC, Insul F

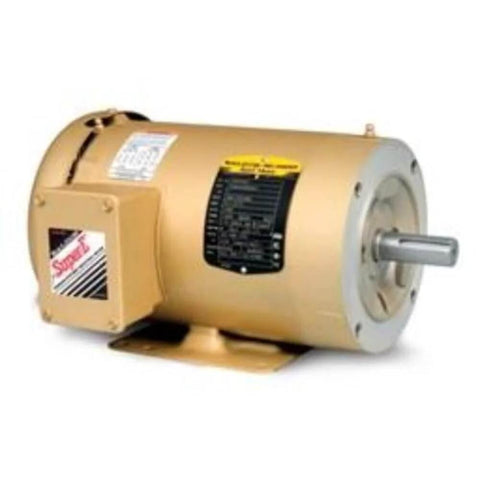

This is a single industrial 3-phase TEFC electric motor used for pumps, conveyors, compressors and automation equipment. It’s a rugged continuous-duty motor handy for plant floors, motor starters, and linear slide unit drives.

✅ Model: CEM3615T · Cat. NO CEM3615T · SPEC 36G271S268G1
✅ Power: 5 HP · Phase: 3 · Speed: 1750 RPM · Hz: 60
✅ Voltage: 208-230/460 V (usable at 208 V) · 40C ambient continuous rating
✅ Frame: 184TC · Mount: C-Face and foot mount · Enclosure: TEFC
✅ Service Factor 1.15 · Code J · Design B · Insulation Class F
✅ NEMA nominal efficiency 89.5% · Power factor 0.78 · Sealed ball bearing arrangement
✅ Bearings: DE 6206 · ODE 6205 · PF and bearing specs fit sealed ball bearing setups
✅ Cross refs: SPEC 36A002S268G1, 36G271S268G1 (order/check both part numbers)

💡 What is a TEFC 3-phase motor used for in industrial automation applications? A TEFC motor keeps dust and moisture out of the winding area, making it handy for dirty or humid shop-floor environments and continuous-duty driven loads.

Quick summary sentence for decision makers:

- Ideal for pumps, fans, compressors, conveyors, and linear slide unit drives where a sealed ball bearing motor is preferred - Works with standard motor starters and controls; good match for high-efficiency NEMA applications and ceramic-bearing upgrade options - Compact 184TC frame with C-Face/Foot mounting makes installation and replacement straightforward for plant maintenance
