Shop Ready Mini Pneumatic Air Cylinder With One Inch Bore And Five Inch Stroke. Single Rod Design Packs Standard One Eighth Thread Ports For Fast Hook Ups. Lightning Smooth Cycling And Beefy Build Specs For Your Next Rig.

One unit mini pneumatic air cylinder for tight spaces

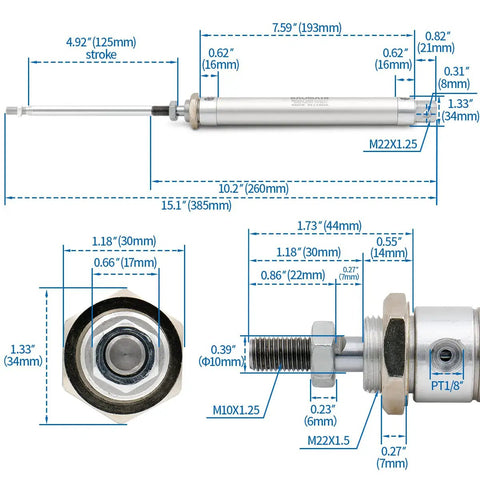

✔️ 25mm bore 125mm stroke 10mm rod 1/8 port 30mm body

This compact double acting pneumatic cylinder converts compressed air into reliable linear force for clamping, indexing, and transfer tasks in small machine tools.

✅ 25 mm bore 0.98 inch width plus 125 mm stroke 4.92 inch travel

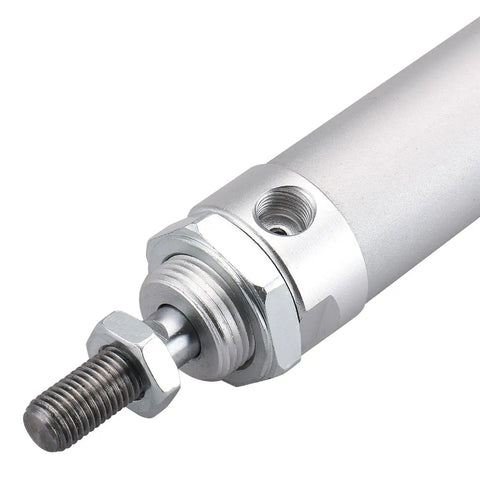

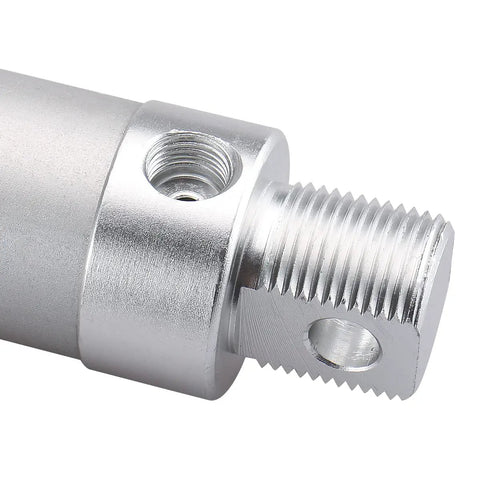

✅ 1/8 inch PT thread size paired with 10 mm rod 0.39 inch diameter
✅ 30 mm casing 1.2 inch height and 260 mm length 10.2 inch reach
✅ Aircraft grade aluminum alloy housing built for steady heat buildup
✅ Compressed air drive delivering smooth push and pull cycles reliably

💡 How does a double acting pneumatic cylinder solve jamming issues on production lines?
A double acting pneumatic cylinder uses pressurized gas on both sides of the piston to control motion in both directions without external springs.
- Pressurized air pushes the rod out while exhaust leaks from the opposite end
- Handy switching valves reverse airflow quickly so parts move exactly where you point them
- Grease packed rod seals reduce drag during fast recycling stops and starts

✝️
