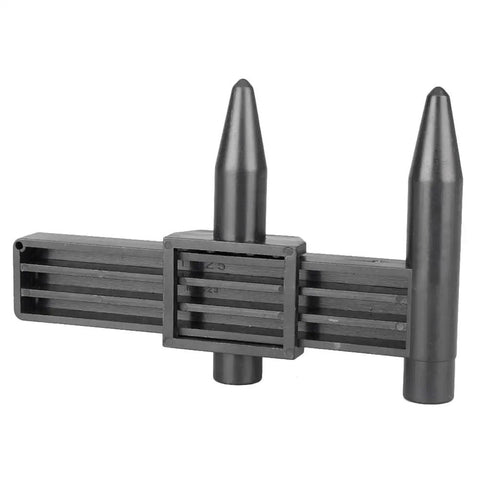

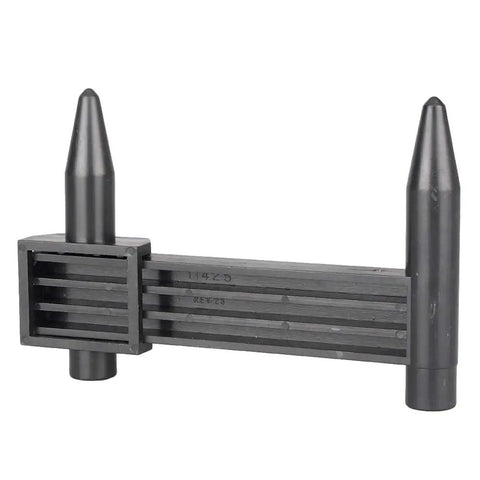

Shop Rated Pcd Measuring Tool For Hot Rods And Beater Rides Reads 4 5 6 8 Lug Patterns Exact Rugged Steel Wheel Rim Bolt Gauge Built For Garage Tinkers And Weekend Gear Heads Projects

Precision Wheel Lug Pattern Gauge For Car And Truck Mods
✔️ Fits 4 5 6 8 lug wheels checks bolt circle diameters fast

This stud pattern gauge helps you ID wheel rim spacing without measuring tape guesswork. Use it in home garages or pro shops to match aftermarket wheels and restore classic rims securely.

✅ Measure four lug layouts ranging from 98mm (3.86 in) to 140mm (5.51 in)
✅ Check five lug patterns spanning 100mm (3.94 in) up to 150mm (5.91 in)
✅ Cover six and eight lug setups from 4.5 in (115mm) to 6.5 in (170mm)
✅ Single black plastic gauge fits standard garage workbench storage

Pattern	Dimensions (mm/in)
4 Lug	98mm (3.86 in), 100mm (3.94 in), 108mm (4.25 in), 110mm (4.33 in), 112mm (4.41 in), 120mm (4.72 in), 130mm (5.12 in), 140mm (5.51 in)
5 Lug	100mm (3.94 in), 108mm (4.25 in), 115mm (4.53 in), 120mm (4.72 in), 130mm (5.12 in), 135mm (5.31 in), 150mm (5.91 in), 4.5 in (114.3mm), 4.75 in (120.7mm), 5 in (127mm), 5.5 in (139.7mm)
6 Lug	4.5 in (114.3mm), 5.0 in (127mm), 5.5 in (139.7mm), 115mm (4.53 in), 130mm (5.12 in)
8 Lug	6.5 in (165.1mm), 170mm (6.69 in)

💡 What function does a wheel bolt circle template perform during vehicle builds?
Scouting fresh wheels often leads to wrong size buys. This handy gauge snaps onto lugs quick so you bypass the math headache. Pull it out before dropping dough on rims that clash with suspension parts. Locking down the correct bolt circle keeps your project rolling smooth and factory tight.

✝️
