SFU2010 Ball Screw 2300mm Linear Motion Kit With Anti Backlash Nut Heavy Duty CNC Ballscrew Set Including BK15 BF15 End Supports And Coupler 8mm Shaft Ready 90.55 Inch Precision Drive
✔️ 2300mm total length, SFU2010, anti-backlash nut, BK15/BF15 fits

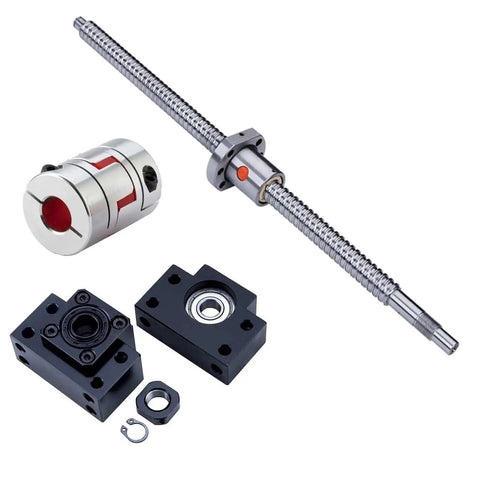

The SFU2010 ball screw kit delivers precise linear motion for CNC machines, automated rigs, and robotics projects. It includes a SFU2010 RM2010 screw, anti-backlash nut, BK15/BF15 end supports, and a coupling, ready to install on your setup.
Key specs at a glance:

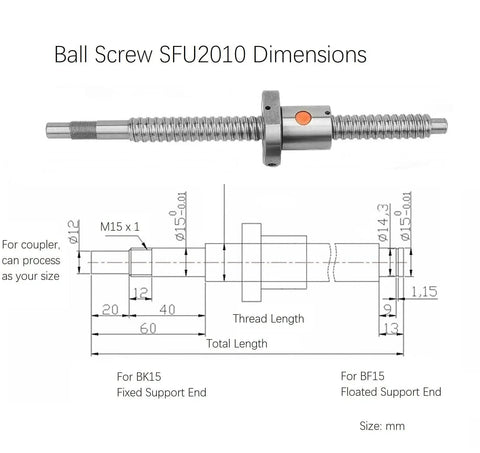

✅ 20mm RM2010 diameter, 10mm pitch, 10mm lead (2300mm / 90.55")
✅ Total length 2300mm (90.55"), thread length 2227mm, travel 2175mm
✅ Anti-backlash nut for higher accuracy and longer service life

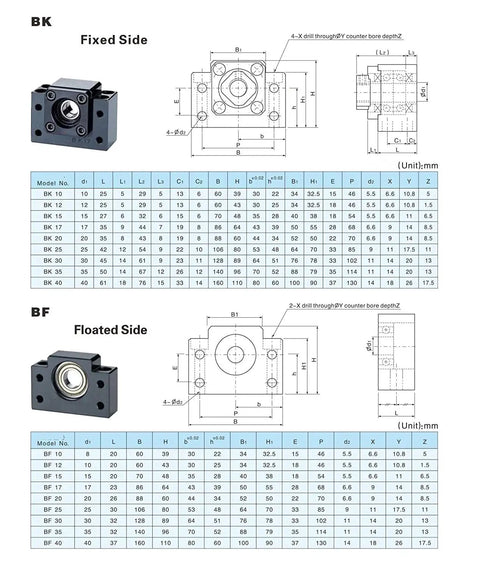

✅ BK15/BF15 end supports with locknuts and circlips included
✅ Coupler included; motor shaft bore 8mm standard (custom bore available)
✅ Right-hand default; left-hand version available on request
💡 What is a ball screw assembly used for in CNC and linear motion systems? It's a handy component that converts rotary motion into precise linear travel with low friction and minimal backlash.
- Lower friction for smoother operation
- Backlash control for repeatable positioning under load
- Easy integration with end supports and couplers
