SFU1605 RM1605 Ball Screw Assembly 16mm Diameter 700mm Length With Metal Deflector Ball Screw Nut BK BF12 End Supports And Coupler End Machining High Precision CNC Linear Actuator For Low Friction Quiet Operation And High Stiffness

SFU1605 Ball Screw Kit with End Supports, 700mm
✔️ 16mm screw diameter, 700mm (27.56in) length, nut, supports, coupler

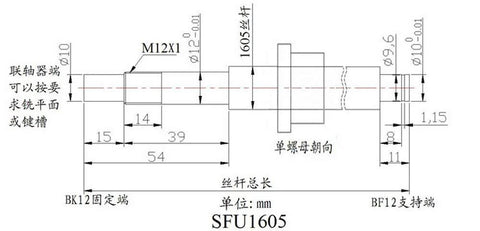

This precision ball screw assembly pairs a SFU1605 RM1605 screw with a metal deflector nut, BK12/BF12 end supports, and a flexible coupler. Length is 700mm overall with end machining options to fit your CNC or automation rig. Custom lengths and end machining per drawings are available on request.

✅ SFU1605 RM1605 ball screw, 16mm diameter, 700mm length

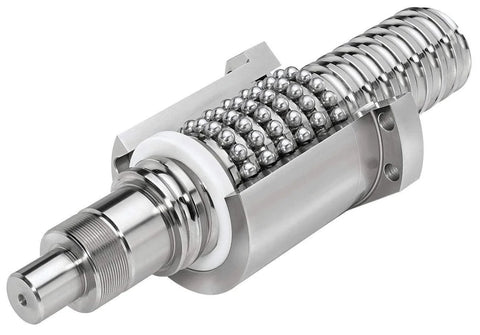

✅ Includes metal deflector ball screw nut

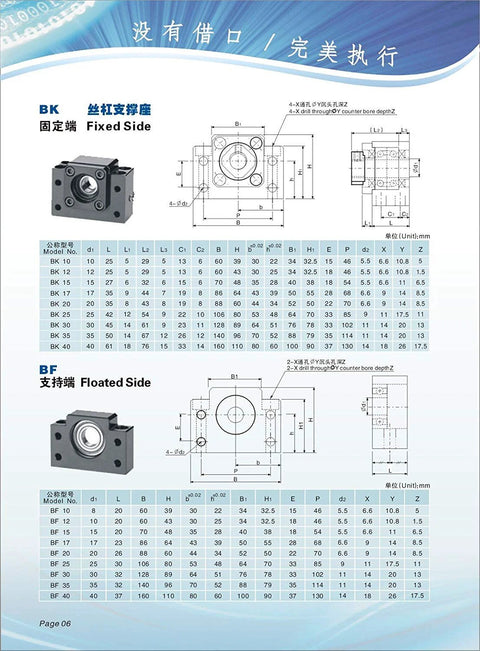

✅ BK12/BF12 end supports with locknuts and circlips
✅ Flexible coupler; bore size adjustable to motor shaft

💡 What is a ball screw assembly used for in CNC machines and automation projects?

For precise, smooth linear motion in CNC axes and automation stages, a ball screw converts rotary motion from a motor into efficient translation while minimizing friction.

- ball screw with precise linear motion for CNC axes - compatible with BK12/BF12 end supports and flexible couplers - low friction design reduces heat and motor load
