SFlex Hytrel Sleeve Bearing For Coupling Size 10 With TB Wood's 10HS Sure Flex Plus Pro Grade 2 Piece Insert Seven And One Sixteenth Inches Outside Diameter Three Seven Sixteenth Inches Insert Width Eighteen HP At One Hundred RPM 3600 RPM Maximum Factory

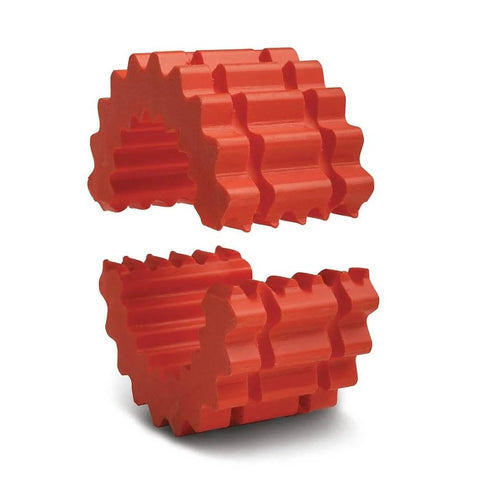

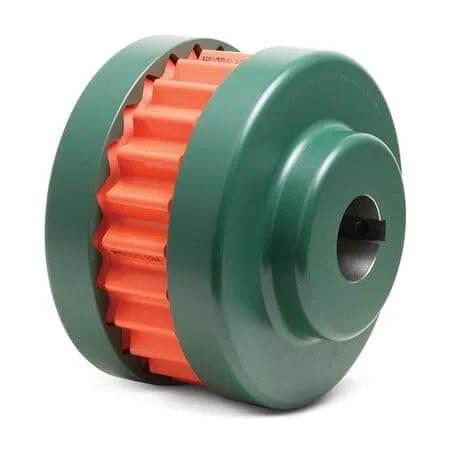

Hytrel sleeve bearing for 2-piece coupling, size 10
✔️ OD 7 1/16 in, insert width 3 7/16 in, 18 hp @ 100 rpm, 2-piece insert

This two-piece Hytrel insert bearing is built for robust coupling applications across power transmission systems. It’s a handy choice in systems like compressors, conveyors, fans, pumps, and electric motors where vibration and misalignment need controlled handling.

✅ Sure-Flex Plus
✅ Coupling Size 10
✅ Maximum Speed 3600 RPM
✅ Maximum Torque 11,350 in-lb
✅ Outside Diameter 7 1/16 in
✅ Insert Construction - New 2-Piece
✅ Angular Misalignment 0.25 Degrees
✅ Horsepower @ 100 RPM 18 hp
✅ Insert Material Hytrel
✅ Insert Width 3 7/16 in
✅ Parallel Misalignment 0.02 in
✅ System of Measurement Inch
✅ Torsional Stiffness 100,000 in-lb/rad
✅ Application: Compressors, Conveyors, Electric Motors, Fans/Blowers, Mixers, Pumps
✅ Maximum Operating Temperature 250 Degrees F
✅ Color Orange

💡 What is a Hytrel sleeve bearing used for in industrial couplings?

In practical terms, it supports rotating shafts and dampens vibration in drive systems.

- Handy for alignment and load transfer in compressors, pumps, fans
- Useful in conveyors and mixers where misalignment and shock occur
- Maintains performance with a 2-piece Hytrel insert design
- Durable, lubrication-free operation in many setups
