Servo Linear Actuator ZBX80 Plus CNC Motion Platform With 400W 220V Servo Motor No Brake Or Driver For XYZ Axis 400mm Travel Aluminum Alloy Linear Slide Table Rail Guide High Precision With Solid Load Handling Up To 80kg

ZBX80 Plus Servo Linear Actuator for CNC with 400mm Travel

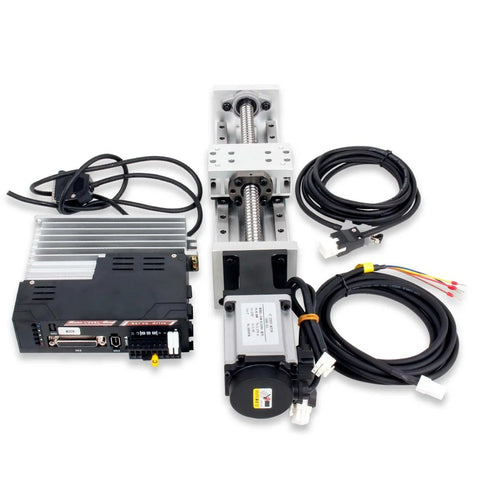

✔️ 1x ZBX80 Plus unit: 400W servo, 400mm stroke, 80kg horizontal load

The CNC-ready servo linear actuator platform delivers precise, repeatable motion with a 400 mm travel and a robust aluminum alloy frame. It’s commonly used for XYZ axes, motion stages, and automated tooling setups where reliable positioning matters.

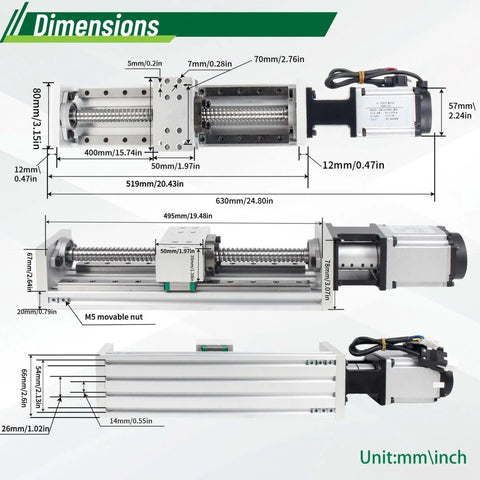

✅ Stroke: 400 mm (15.75 in) travel
✅ Load capacity: Horizontal 80 kg (176.37 lb), vertical 20 kg (44.09 lb)

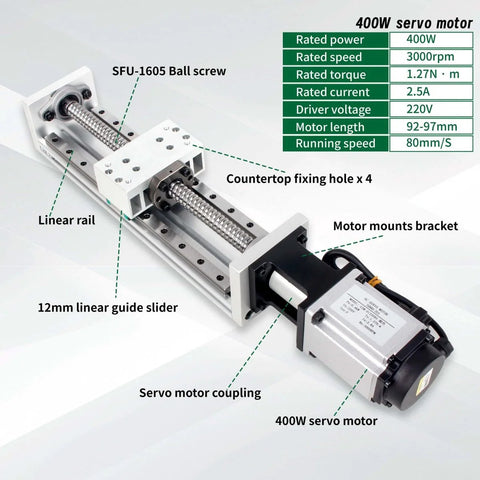

✅ Guide & screw: 12 mm linear guide with 1605 ball screw for high precision

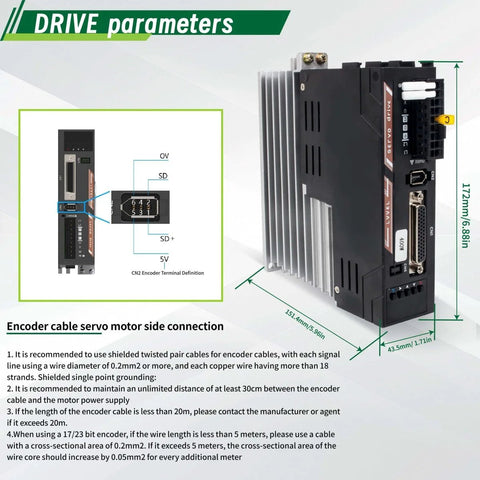

✅ Motor & encoder: 400W 220V servo motor, 17-bit encoder, 2 m cable

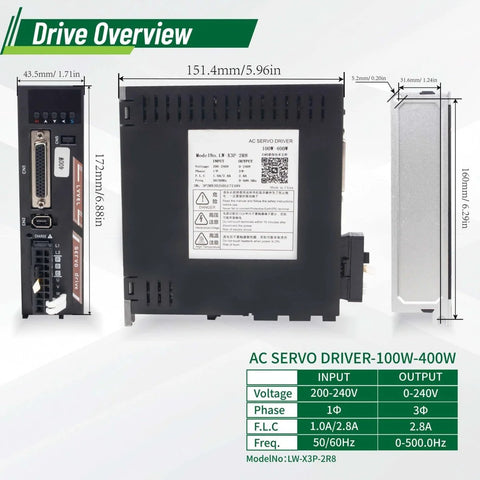

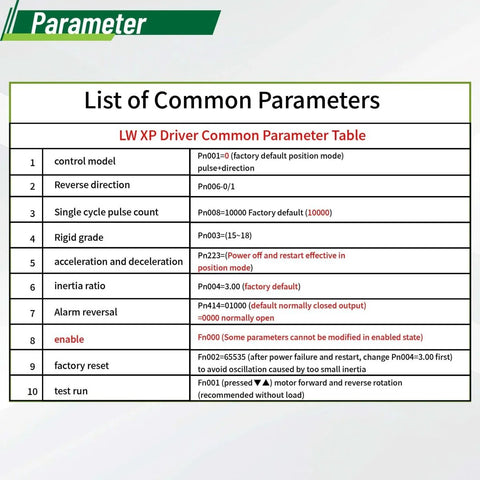

✅ Drive interface: 485 communication, speed/position/torque modes with LED display panel

💡 What is a servo linear actuator used for in CNC motion systems?

In practical terms, a servo linear actuator provides precise automated movement for tooling, workholding, and positioning in CNC setups.

• servo linear actuator for CNC motion control to position X Y Z axes reliably
• combines ball screw and linear guide for smooth, accurate translation
• interfaces with PLCs and HMI controllers via 485 communication for easy integration
• ideal for CNC routers, milling machines, and automated assembly lines
