Servo Linear Actuator ZBX80 Plus CNC Linear Stage Motion Platform+400W 220V Servo Motor Without Brake+Driver, XYZ Axis Linear Slide Table Rail Guide (100mm)

ZBX80 Plus Servo Linear Actuator CNC Linear Stage - 100 mm Stroke, 400W 220V Servo Motor, XYZ Axis Linear Slide Table (Single Pack)
✔️ 100 mm effective travel (3.94 in) with 80 kg horizontal load and 20 kg vertical capacity, aluminum alloy frame, ideal for automation in milling, routing, laser cutting, or inspection setups.

• ✅ Stroke: 100 mm (3.94 in)
  ✅ Horizontal load capacity: 80 kg (176.37 lb)
  ✅ Vertical load capacity: 20 kg (44.09 lb)

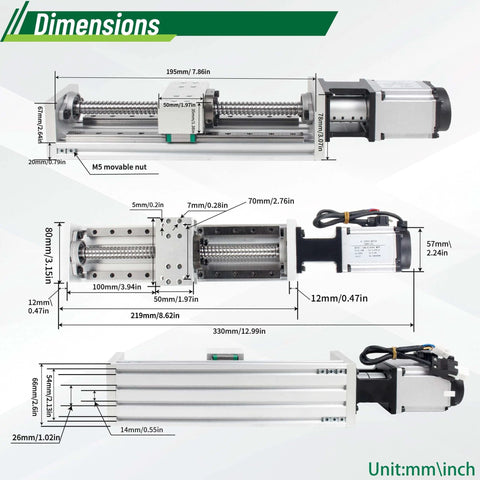

  ✅ Width: 80 mm (3.15 in)
  ✅ Motor: 400 W, 220 V, rated torque 1.27 N m, 3000 RPM

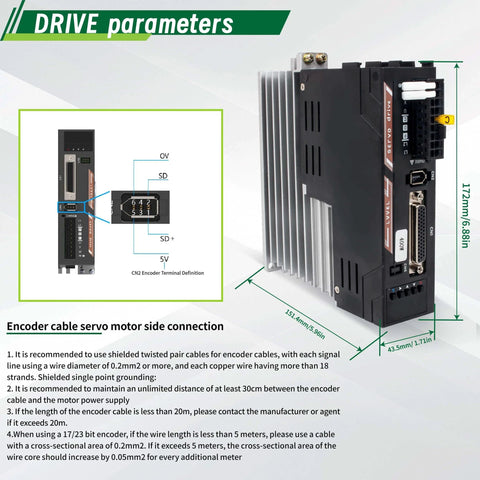

  ✅ Encoder: 17-bit magnetic coding
  ✅ Output cables: motor line 2 m, pulse line 1 m

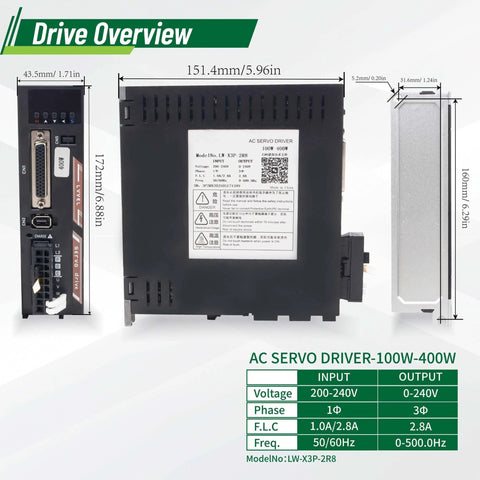

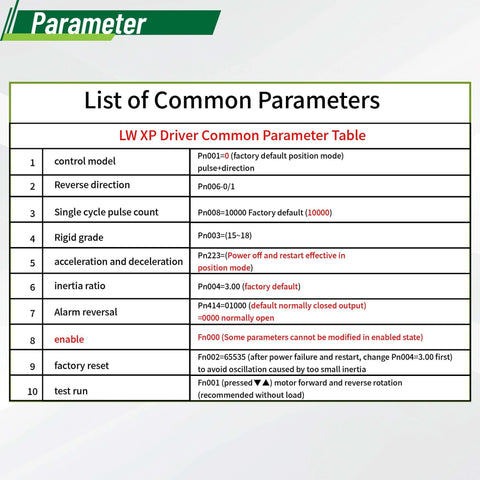

  ✅ Drive: AC servo motor driver with 485 communication, speed mode, position mode, torque mode; LED display for real-time status
  ✅ Pulse input: 5-24 V

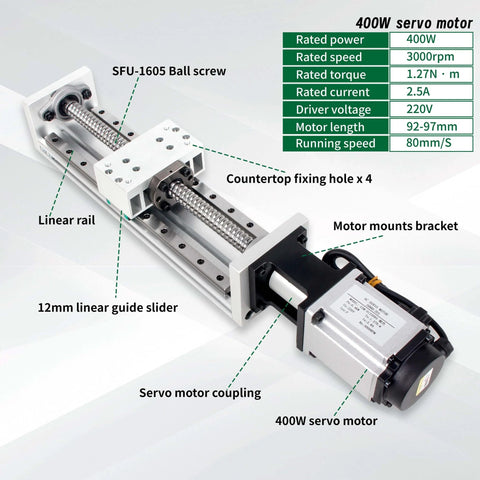

  ✅ Linear guide: 12 mm with 1605 ball screw, automatic centering
  ✅ Materials and construction: bearing steel, carbon steel screw, aluminum bearing seat
  ✅ Bracket and coupling: aluminum alloy bracket with strong locking force and high rigidity

This handy setup delivers precise, repeatable motion for compact automation tasks and boosts productivity in CNC and automation work.

💡 What is a CNC linear stage with a servo motor used for in precision motion control?

In general, these stages provide smooth, controllable linear movement for accurate positioning across automation tasks.

• Precise linear positioning for CNC milling, laser processing, and inspection systems
• Closed-loop control with encoder feedback and servo drive integration
• Handy, compact motion platform that handles solid loads in tight spaces
