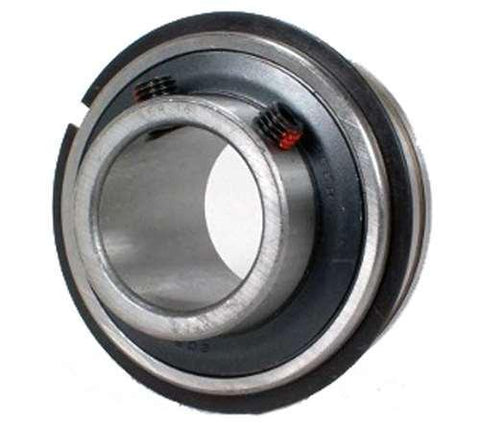

SER-30mm Bearing Insert 30mm Mounted
Title
$90.99
SKU: Kit19179
UPC: 00193019269534
UPC: 00193019269534
Item: SER-30mm Bearing
Type: Bearing Insert
Shaft Diameter: 30mm
Dynamic Load Rating: 19438 N
Static Load Rating: 10319 N
Type: Bearing Insert
Shaft Diameter: 30mm
Dynamic Load Rating: 19438 N
Static Load Rating: 10319 N
This item will be shipped within One Week Returns Subject to 15% restocking Fee |
SER-30mm Bearing Insert Set Screw Locking 30mm Inner Diameter |
SER-30mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with cylindrical outer ring and snap ring, Bearing has relubrication groove with oil hole on side opposite of set screws, bearing has anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A Set Screws are standard, Standard seal is R-Seal.
|

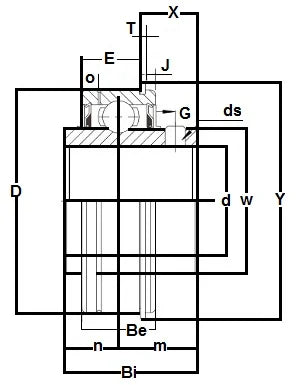

Dimensions (mm) | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D | Bi | Be | n | m | E | W | o | T | J | G | Y | X | ds(UNF-Thread) |
62 | 38.1 | 22.2 | 15.9 | 22.2 | 17 | 39.8 | 5.6 | 1.9 | 3.28 | 5.6 | 67.6 | 16.28 | M6XP1.0 |
