VXB

SER-21 Bearing Insert 1 5/16 Inch Mounted

$134.99
SKU: Kit19156
UPC: 00193019269305
Item: SER-21 Bearing
Type: Bearing Insert
Shaft Diameter: 1 5/16" Inch
Dynamic Load Rating: 25666 N
Static Load Rating: 14012 N
This item will be shipped within One Week
Returns Subject to 15% restocking Fee

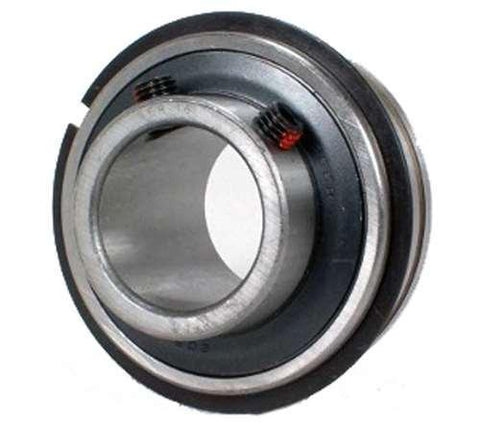

SER-21 Bearing Insert
Set Screw Locking
1 5/16" Inch Inner Diameter


SER-21 Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with cylindrical outer ring and snap ring, Bearing has relubrication groove with oil hole on side opposite of set screws, bearing has anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A Set Screws are standard, Standard seal is R-Seal.

  • Item: SER-21 Bearing
  • Type: Bearing Insert
  • Shaft Diameter: 1 5/16" Inch
  • Dynamic Load Rating: 25666 N
  • Static Load Rating: 14012 N
  • Quantity: One Bearing
  • Ball Bearing

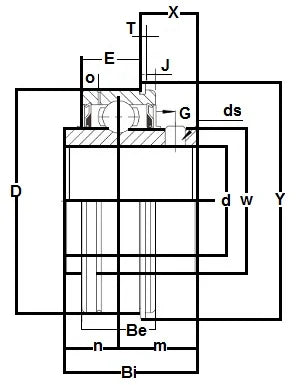

Dimensions (Inches)
D Bi Be n m E W o T J G Y X ds(UNF-Thread)
2-53/64" 1-11/16" 15/16" 11/16" 1" 47/64" 1-27/32" 7/32" 5/64" 1/8" 1/4" 3-3/32" 3/4" 5/16-24x5/16
