SER-20S Bearing Insert 1 1/4 Inch Mounted
$73.99
SKU: Kit19154
UPC: 00193019269282
UPC: 00193019269282
Item: SER-20S Bearing
Type: Bearing Insert
Shaft Diameter: 1 1/4" Inch
Dynamic Load Rating: 19438 N
Static Load Rating: 10319 N
Type: Bearing Insert
Shaft Diameter: 1 1/4" Inch
Dynamic Load Rating: 19438 N
Static Load Rating: 10319 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|

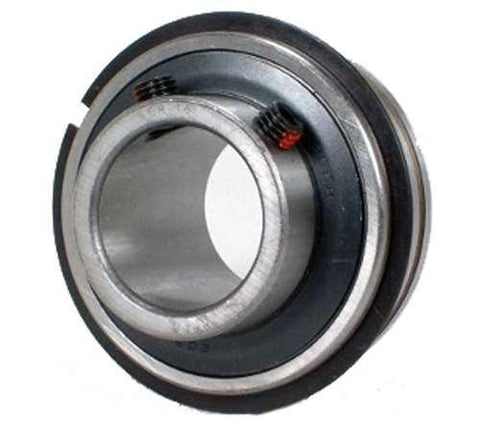

SER-20S Bearing Insert Set Screw Locking 1 1/4" Inch Inner Diameter |
SER-20S Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with cylindrical outer ring and snap ring, Bearing has relubrication groove with oil hole on side opposite of set screws, bearing has anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A Set Screws are standard, Standard seal is R-Seal.
|

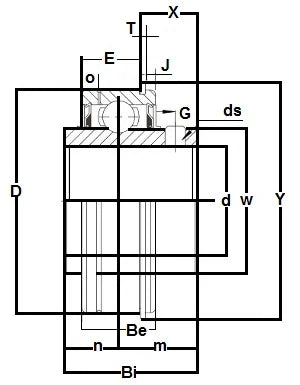

| Dimensions (Inches) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | n | m | E | W | o | T | J | G | Y | X | ds(UNF-Thread) |
| 2-7/16" | 1-1/2" | 7/8" | 5/8" | 7/8" | 5/8" | 1-9/16" | 7/32" | 5/64" | 1/8" | 7/32" | 2-9/32" | 5/8" | 1/4-28x1/4 |
