VXB

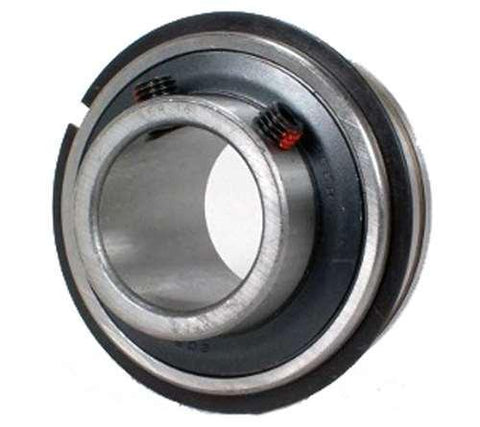

SER-20mm Bearing Insert 20mm Mounted
$58.99
SKU: Kit19148
UPC: 00193019269220
UPC: 00193019269220
Item: SER-20mm Bearing
Type: Bearing Insert
Shaft Diameter: 20mm
Dynamic Load Rating: 12900 N
Static Load Rating: 6272 N
Type: Bearing Insert
Shaft Diameter: 20mm
Dynamic Load Rating: 12900 N
Static Load Rating: 6272 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
SER-20mm Bearing Insert Set Screw Locking 20mm Inner Diameter |
SER-20mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with cylindrical outer ring and snap ring, Bearing has relubrication groove with oil hole on side opposite of set screws, bearing has anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A Set Screws are standard, Standard seal is R-Seal.
|
| Dimensions (mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | n | m | E | W | o | T | J | G | Y | X | ds(UNF-Thread) |
| 47 | 31 | 15.9 | 11.5 | 19.5 | 12.1 | 28.7 | 4 | 1.35 | 2.46 | 5 | 52.7 | 15.36 | M6XP1.0 |
