Semi Automatic PCB Cutting Machine For Lead Wires And Board Pins, Cuts After Soldering With A Sharp Blade, Handles 0.8mm To 2.5mm Thickness, Sturdy Steel Frame, Easy Operation, Pro Grade PCB Trimming Tool

Semi-Auto PCB Cutter for Lead Wires & Pins, 0.8 to 2.5mm

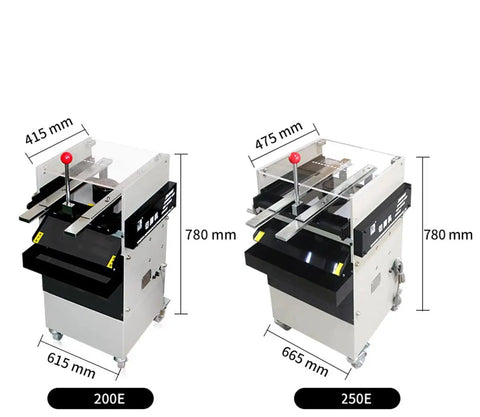

✔️ Sturdy steel frame, 11mm shell, adjustable cutting height, 1 pc

The shell is made of fine steel plate with a thickness of nearly 11mm, making the unit stable with low jitter and low noise. It cuts off redundant pins after soldering, a common task in PCB assembly and prototyping. The blade gland uses a triangle positioning principle to keep the blade fixed, while the double guide rails ensure synchronized movement and an adjustable cutting height for different thicknesses.

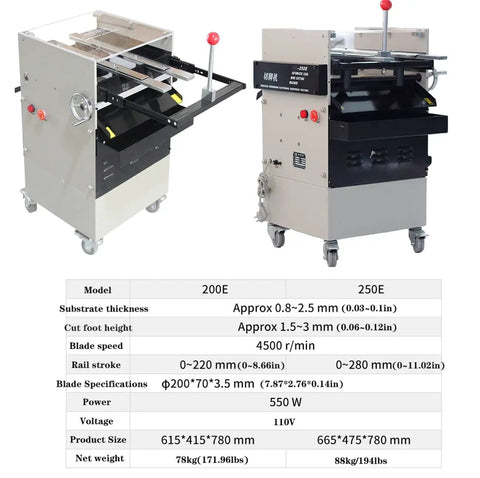

✅ Blade speed 4500 r/min with low jitter for smooth cuts

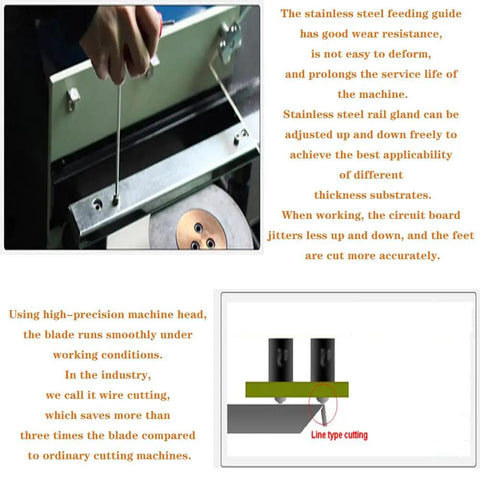

✅ Double guide rails with synchronized stroke and adjustable cutting height
✅ Lead wire cutting height about 1.5mm to 3mm

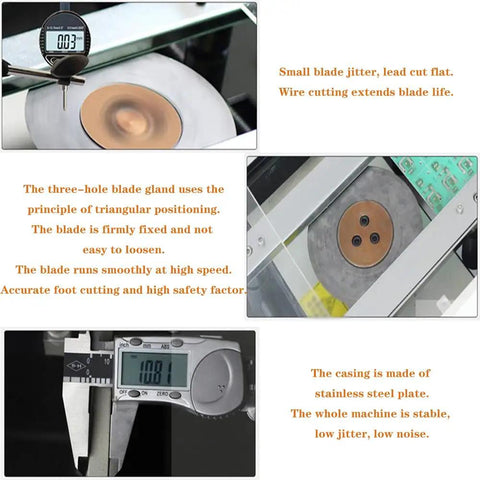

✅ Triangle-position blade gland keeps blade firmly fixed
✅ Steel shell about 11mm thick for stability and low noise

💡 What is a PCB cutting machine used for?

This handy device trims excess pins after soldering and keeps PCBs neat. - post-solder pin trimming for PCB assembly - removes lead wires and board pins after soldering - works with pin thickness of 0.8 to 2.5 mm - enhances workflow in electronics manufacturing
