Seal Kit For Log Splitter Cylinders 5 Inch Bore 2 Inch Rod Rebuild Set Pack Of 11 Heavy Duty Easy Install For Speeco Design And Compatible Cylinders Husky Split Master Oregon Dirty Hands Tool And More
Regular price
$55.95
Sale price$141.00you save $85.05

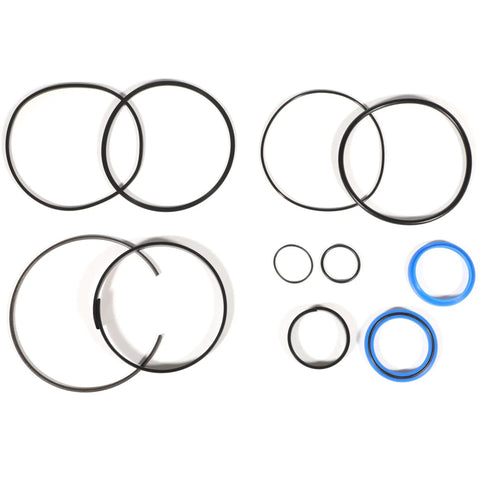

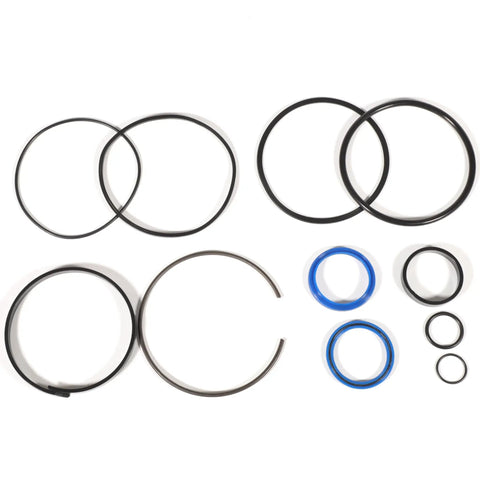

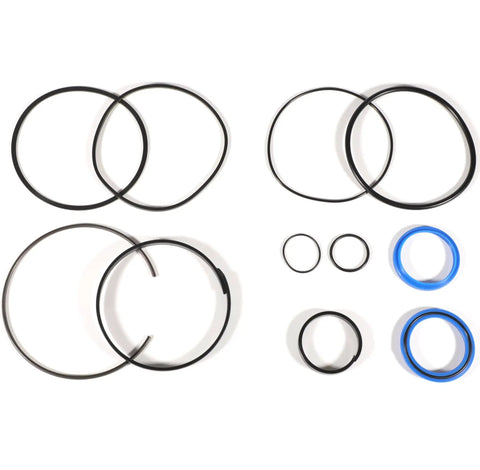

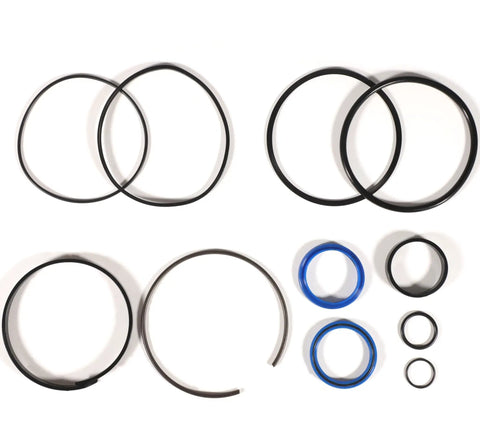

Seal Kit for 5in Bore Log Splitter Cylinders, 11pc Pack

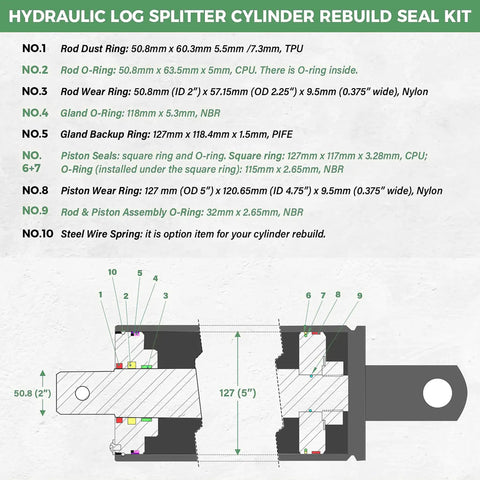

✔️ Fits 5.0 in bore and 2.0 in rod cylinders, Speeco-compatible seals
✅ Rod O-ring: 50.8mm x 63.5mm x 5mm, CPU. There is O-ring inside. It is a compound seal ring to make sure better seal and longer life. It is one of most important seals to prevent oil leakage.
✅ Rod wear ring: 50.8mm (ID 2”) x 57.15mm (OD 2.25”) x 9.5mm (0.375” wide) Nylon
✅ Gland O-ring: 118mm x 5.3mm, NBR
✅ Gland Backup ring: 127mm x 118.4mm x 1.5mm, PIFE
✅ Piston seals: square ring and O-ring. Square ring: D127mm x 117mm x 3.28mm, CPU; O-ring (installed under the square ring): 115mm x 2.65mm, NBR
✅ Piston wear ring: 127mm (OD 5”) x 120.65mm (ID 4.75”) x 9.5mm (0.375” wide), Nylon
✅ Rod and piston assembly O-ring: 32mm x 2.65mm, NBR (NOTE: In most cases, this seal might not be needed to replace. This seal might be different size on some aftermarket model. We add one common size 34.5mm X 1.8mm as extra. It is standard O-ring. If our 2 O-rings are not the size with your cylinder, you can easily find it at any local store, such as Home Depot.)
✅ Steel wire spring: optional item for your cylinder rebuild. You might not need it to replace your old one if it is not damaged during disassembly. Please be sure if our wire ring OD is not same with your old one, please don’t use it.
✔️ Fits 5.0 in bore and 2.0 in rod cylinders, Speeco-compatible seals

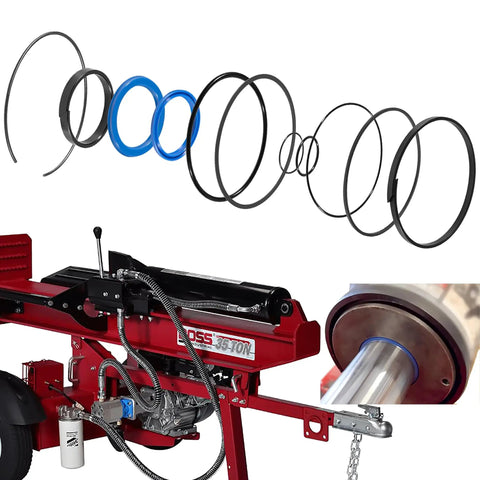

This complete seal rebuild kit refreshes Speeco design and compatible cylinders with a 5.0 in bore and 2.0 in rod. It fits Speeco design and compatible brands such as Husky, Split Master, Oregon, Dirty Hands Tool, and more, delivering reliable sealing and performance.
✅ Rod dust ring: 50.8mm x 60.3mm 5.5mm /7.3mm, TPU✅ Rod O-ring: 50.8mm x 63.5mm x 5mm, CPU. There is O-ring inside. It is a compound seal ring to make sure better seal and longer life. It is one of most important seals to prevent oil leakage.
✅ Rod wear ring: 50.8mm (ID 2”) x 57.15mm (OD 2.25”) x 9.5mm (0.375” wide) Nylon
✅ Gland O-ring: 118mm x 5.3mm, NBR
✅ Gland Backup ring: 127mm x 118.4mm x 1.5mm, PIFE
✅ Piston seals: square ring and O-ring. Square ring: D127mm x 117mm x 3.28mm, CPU; O-ring (installed under the square ring): 115mm x 2.65mm, NBR
✅ Piston wear ring: 127mm (OD 5”) x 120.65mm (ID 4.75”) x 9.5mm (0.375” wide), Nylon
✅ Rod and piston assembly O-ring: 32mm x 2.65mm, NBR (NOTE: In most cases, this seal might not be needed to replace. This seal might be different size on some aftermarket model. We add one common size 34.5mm X 1.8mm as extra. It is standard O-ring. If our 2 O-rings are not the size with your cylinder, you can easily find it at any local store, such as Home Depot.)
✅ Steel wire spring: optional item for your cylinder rebuild. You might not need it to replace your old one if it is not damaged during disassembly. Please be sure if our wire ring OD is not same with your old one, please don’t use it.
💡 What is a log splitter cylinder seal kit used for?
This handy kit helps rebuild hydraulic cylinders on log splitters, restoring sealing and longevity. - Seals and o-rings included cover the complete rebuild for a 5.0 in bore and 2.0 in rod - Compatible with Speeco design and brands like Husky, Split Master, Oregon, Dirty Hands Tool - Helps extend cylinder life and reduce downtime on log splitters✝️
